Features

  • Made in America design and quality
  • DC input power up to 15V
  • Customization of specifications available

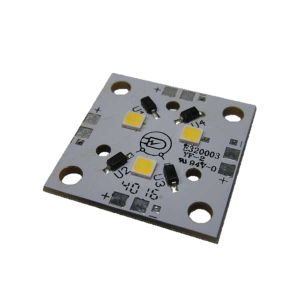

  • Three LEDs and  four sets of power pads
  • Daisy-chain capable up to twenty units
  • Beam sculpting optics available

Download

Applications

Literature

DynaSqr G025 – DynaSqr G025 Data Sheet

  • Lamp & Luminairre Lighting
  • Architectural Lighting
  • Display Lighting

  • Panel Lighting
  • Cabinet & Display Case
  • Mosaic Pattern Lighting

Specifications

ProductG025-XXXXXX-SOG025-XXXXXX-HO
GeneralShape:Square
Lumens:76 to 108 lm130 to 184 lm
Beam Angle:150o
CCT:2700K to 6500K & Horticulture
CRI:80+ & 90+
Colors:Red, Green, Blue, & Yellow
Field Cut:No
Daisy Chain Limit:30 Units 20 Units
Forward Voltage:11 min | 12.7 Nom VDC | 15 max
Efficacy:150 lm/W127 lm/W
Power Consumption:8.64 W / ft16.8 W / ft
ControlDimming:Yes
Type:PWM
EnvironmentOperating Temp:-40 to 100o C
Storage Temp:-40 to 125o C
MechanicalConnection:4 Sets Sold Pads
Dimensions :1.0 x 1.1 x 0.115 in
Weight:0.075 oz
RegulatoryCompliance:RoHS
Warranty:1 Year

* All specifications are subject to change without prior notification.

Ordering Detail

Example: G025-N75827-HO

Accessory Ordering Detail

Part
Number
DescriptionLED NumberFull Width
Viewing Angle
CO-10507Narrow Spot316o
CO-10511Frosted Narrow322o
CO-10508Frosted Medium326o
CO-10509Frosted Wide337o
CO-10510Frosted Eliptical343 x 16o
