Product Description
The LUXdrive™ DuoStrip is a high brightness light engine strip with 48 LEDs per foot, delivering over 1,100 lumens at 12-24VDC. Its versatile design allows for easy cutting every three inches, enabling individual segments to function as standalone light engines, while daisy-chaining boards up to 20 feet in total length provides maximum adaptability for various needs and applications.
Documentation
Literature
DuoStrip I033/L045 – DuoStrip Data Sheet
Features
- 12 or 24Vdc Input – No Driver Required!
- Nichia LEDs
- Cuttable and End-to-End Connectable
- Multiple CCTs and colors available
Applications
- Track Lighting
- Architectural Lighting
- Cabinet & Display Case
- Sign & Channel Letters
Specifications
| Product | L045-N7xxxx40 | I033-N7xxxx40 | |
|---|---|---|---|
| General | Shape: | Rectangle | |
| LED Count | 48 | ||
| Field Cut | Standalone light engines down to 3-inch sections | ||
| Daisy Chain Limit | Up to 11 feet | ||
| Lumens1 | 1076 to 1146 lm | ||
| Beam Angle | 120° | ||
| Optics | None | ||
| CCT | 2700K to 6500K & Horticulture | ||
| CRI | 80-90 | ||
| Colors | Blue, Green, Red & Yellow | ||
| Electrical | Typical Input Voltage | 12VDC | 24VDC |
| Min. | Max. Voltage | 11VDC | 13VDC | 20VDC | 30VDC | |
| Wattage | 8 W/ft | ||
| Efficacy 2 | 149 lm/W | ||
| Control | Dimming | Yes | |
| Type | PWM (Pulse Width Modulation | ||
| Environment | Operating Temp | -40 to 80o C | |
| Storage Temp | -40 to 125o C | ||
| Mechanical | Connection | 4 Solder Pads per 3" section | |
| Mounting Holes | 8 | ||
| Dimensions | 12.0 x 0.95 x 0.13 in | ||
| Weight | 0.29 oz (8.3g) | ||
| Regulatory | Compliance | RoHS | |
| Warranty | 1 Year | ||
* 1,2 Caclulated using white, non horticulture, LEDs.
* All specifications are subject to change without prior notification.

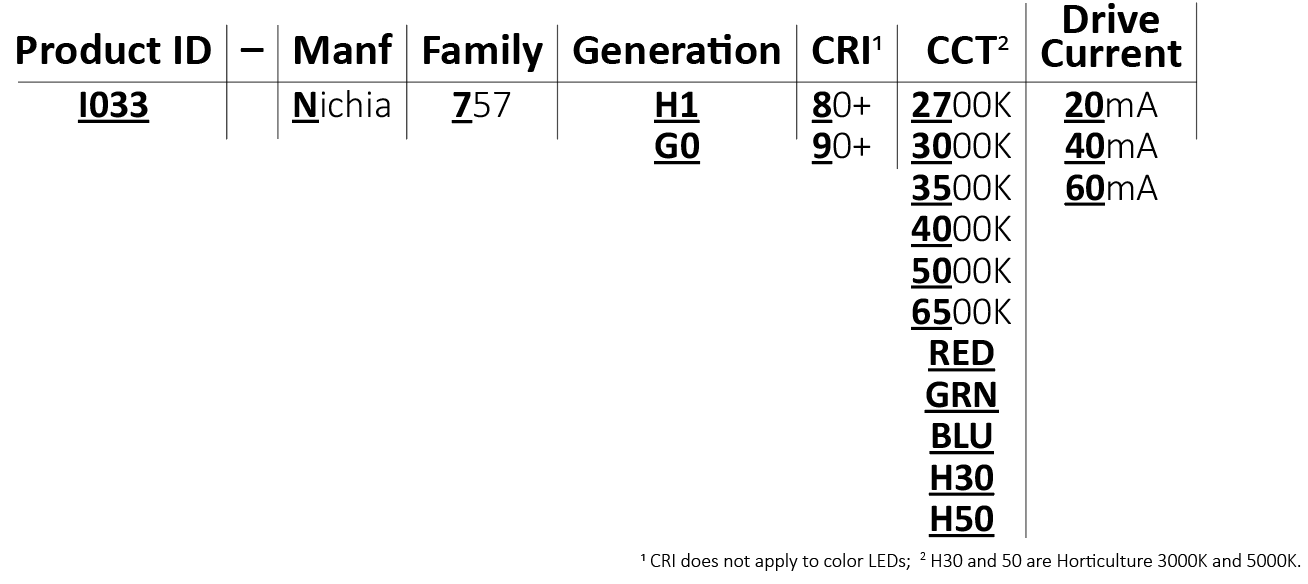

Ordering Detail
Example: I033-N75850-SO
