Features
- Made in America craftsmanship and quality
- Customization of specifications available
- Input voltage up to 32V
- 350mA, 500mA, or 700mA constant current output
- Continuous output short circuit and open circuit protection
- Small 2.00” x 1.2” x 0.38” mechanical envelope
- Input reverse polarity protection
- 0-10V Dimming compatible
Download
Applications
Literature

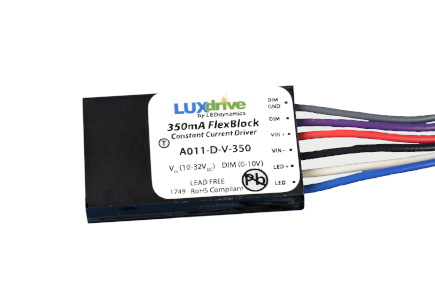

FlexBlock A011 – A011_FlexBlock_v2.0
- Solar Lighting
- Architectural Lighting
- Point of Purchase Lighting
- Marine Lighting
- Signal & Marker Lighting
- Track Lighting
- Flash & Strobe Lighting
- Cabinet & Display Case
- Sign & Channel Letters
Specifications
| Product | A011-D-V-350 | A011-D-V-500 | A011-D-V-700 | |
|---|---|---|---|---|
| General | Topology: | Buck - Boost | ||
| Input / Output: | DC / DC | |||
| Input | Voltage Range: | 10 to 32 VDC | ||
| Efficiency: | 90% | |||
| Output | Drive Current: | 350 mA | 500 mA | 700 mA |
| Current Accuracy: | ±10% | |||
| Control | Dimmable: | Yes | ||
| Type: | 0 - 10 V | |||
| Protection | Short Circuit: | Continuous in Buck Boost mode | ||
| Environment | Operating Temp: | -40 to 80o C | ||
| Storage Temp: | -40 to 125o C | |||
| Operating Case TempMax: | -40 to 80o C | |||
| Mechanical | Connection: | 6 Wire Lead | ||
| Dimension: | 2.0 x 1.2 x 0.375 in | |||
| Weight: | 1.2 oz | |||
| Regulatory | Compliance: | RoHS | ||
| Warranty: | 2 Years | |||
* All specifications are subject to change without prior notification.
Ordering Detail
| Part Number | Input Voltage | Drive Current | Control | Connection |
|---|---|---|---|---|
| A011-D-V-350 | 10 to 32 VDC | 350 mA | 0 - 10 V | 6 Wire Lead |
| A011-D-V-500 | 500 mA | |||
| A011-D-V-700 | 700 mA |
