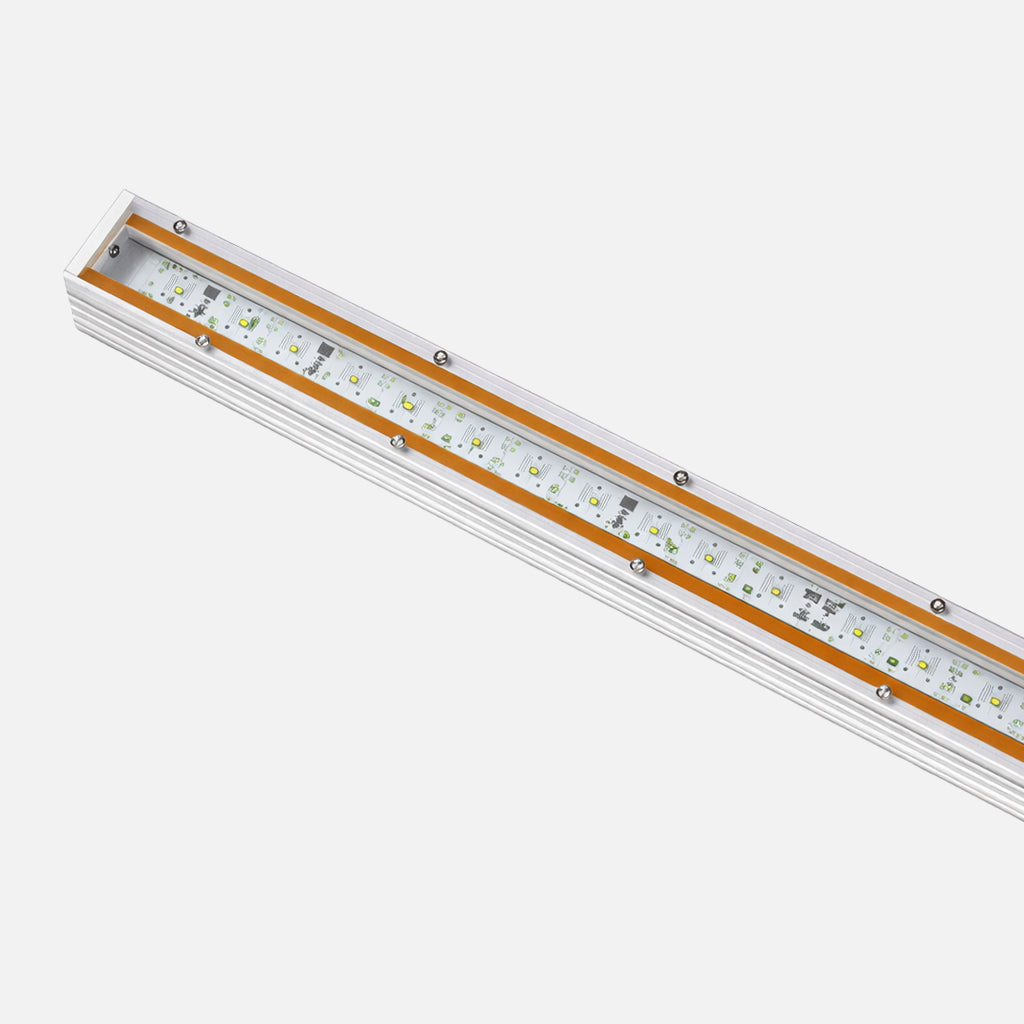

Heavy-Duty Wet-Rated Linear LED Rails with 1.2-Inch Pitch and Wide 115° Optics

The Zuma - ZV linear LED light fixture with a fixed or articulating position mounting option available becomes a reliable and versatile solution for specifiers to use with confidence.

ZV is available in one inch increments up to four feet in length. It can be configured either in series or parallel to a single driver.  ZV will easily meet the needs of many general illumination applications with demanding environmental conditions.

Features

  • Made in America quality and craftsmanship
  • UV stabilized polycarbonate lens
  • Five standard CCTs plus options for colored customization
  • Fixed and articulating mounting options
  • Daisy chain configurable wiring to a single driver
  • Thermal monitoring and current control combine to maintain light levels while guarding against overheating

QUICK SPECS

  • High-capacity outdoor delivery from 559 to 924 lumens per foot
  • Fully wet-rated and sealed for extreme environmental applications
  • Integrated onboard 0–10VDC dimming and active thermal protection
  • Wide-angle 115° light distribution for smooth ambient coverage

Technical Specifications

Parameter Specification
Lumen Output 559 to 924
CRI 80 – 90+
Beam Angle 115°
Lens Clear
Dimmable Yes
Onboard Dimming Yes
Fixture Length 12” min to 48” max
Incremental Length 1"
Environmental Wet
