RectiBlock N006-12V – 12AC/DC Rectifier
View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.
Part# N006-12V
Couldn't load pickup availability
Upgrade 12V AC Systems Without Rewiring
Convert Legacy Landscape Lighting to Modern DC—In Minutes

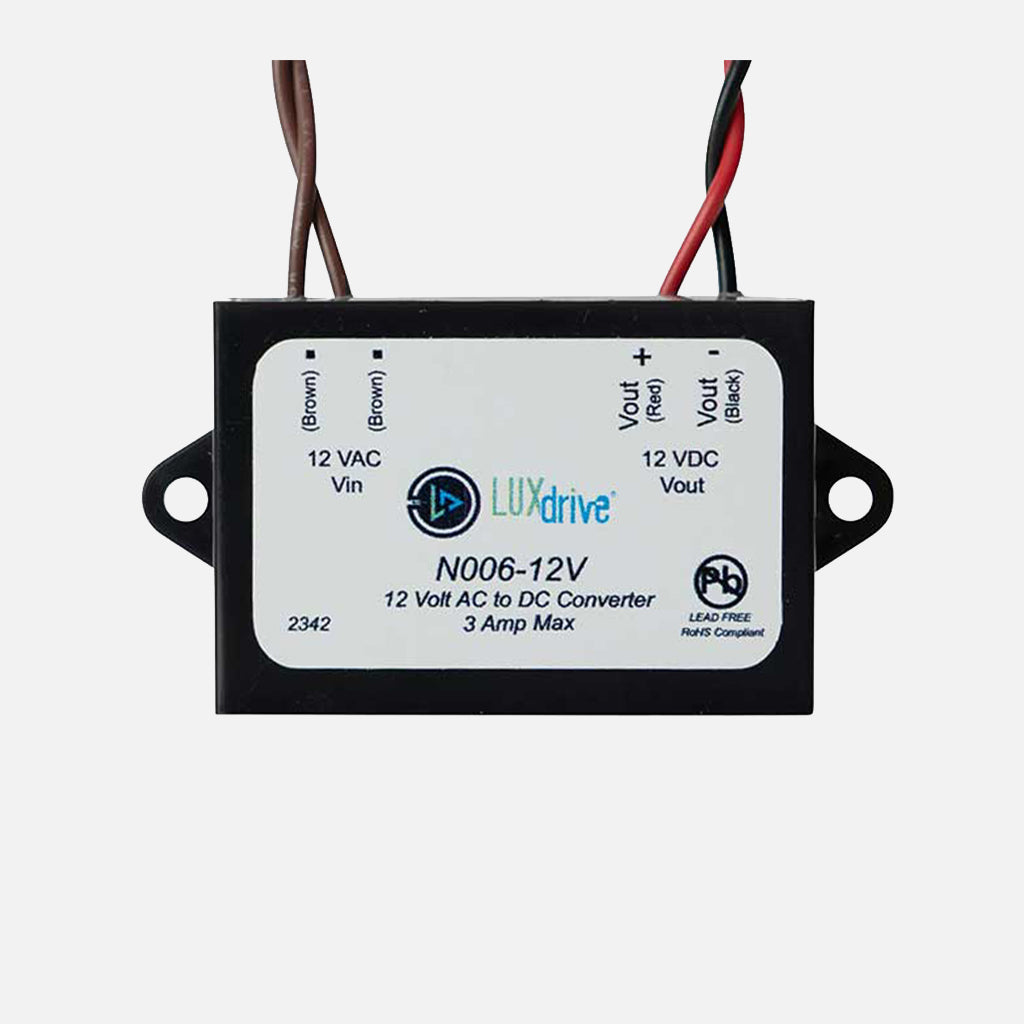

The LUXdrive™ RectiBlock N006 makes it easy to upgrade existing 12V AC landscape lighting systems to clean, reliable 12V DC power—without replacing transformers or reworking infrastructure.
Designed for real-world installations, the N006 installs inline at the fixture or junction point, enabling modern LED performance in minutes.
QUICK SPECS
- Input voltage range: 12 to 14 VAC
- Output voltage range: 11 to 13 VDC
- 5V PWM Control type
- Dimmable
- 18AWG 6" Wire Leads
Turn Any 12V AC System into a Modern LED Platform
Most legacy landscape lighting systems operate on AC power, limiting compatibility with today’s LED fixtures and controls.
The N006 removes that barrier instantly.
- Convert 12V AC to stable 12V DC
- Enable modern LED fixtures and modules
- Upgrade systems without full replacement
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage Range: | 12 to 14 VAC |
| Output Voltage Range: | 11 to 13 VDC |
| Dimmable: | Yes |
| Control ype: | 5V PWM |
| Protection: | Short/Open Circuit |
| Operating Temp: | -20 to 40° C |
| Storage Temp: | -40 to 125° C |
| Operating Case Temp: | -40 to 80° C |
| Connections: | 18AWG 6" Wire Leads |

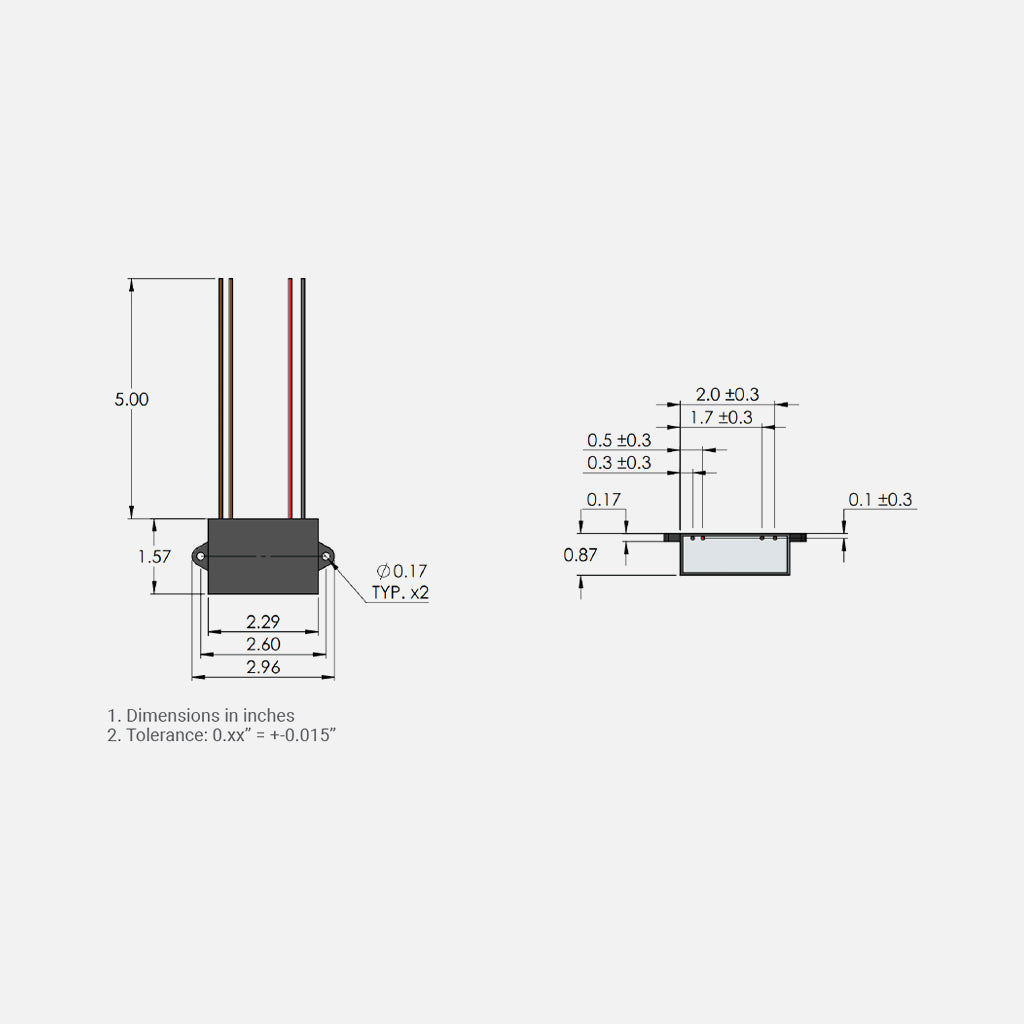

| Dimensions (inches): | 2.29L x 1.57W x 0.87H |
| Weight: | 0.3 oz |
| Regulatory compliance: | RoHS |
| Warranty: | 2 Years |
Built for Professional Installations
Upgrade in Place
Avoid costly rewiring or transformer replacement. Convert existing systems quickly and efficiently.
Improve Lighting Performance
Stable DC output supports better LED performance, consistency, and long-term reliability.
Install Fast
Compact design with integrated mounting tabs allows for quick, secure installation at the point of use.
Designed for Outdoor Environments
Fully potted construction protects against moisture, dust, and harsh conditions.
Key Features
- Converts 12V AC input to 12V DC output
- Fully potted, weather-resistant design
- Inline wire connection for simple installation
- Integrated mounting tabs for secure placement
- Compact form factor for fixture-level installation
- Designed and built in the USA
Ideal Applications

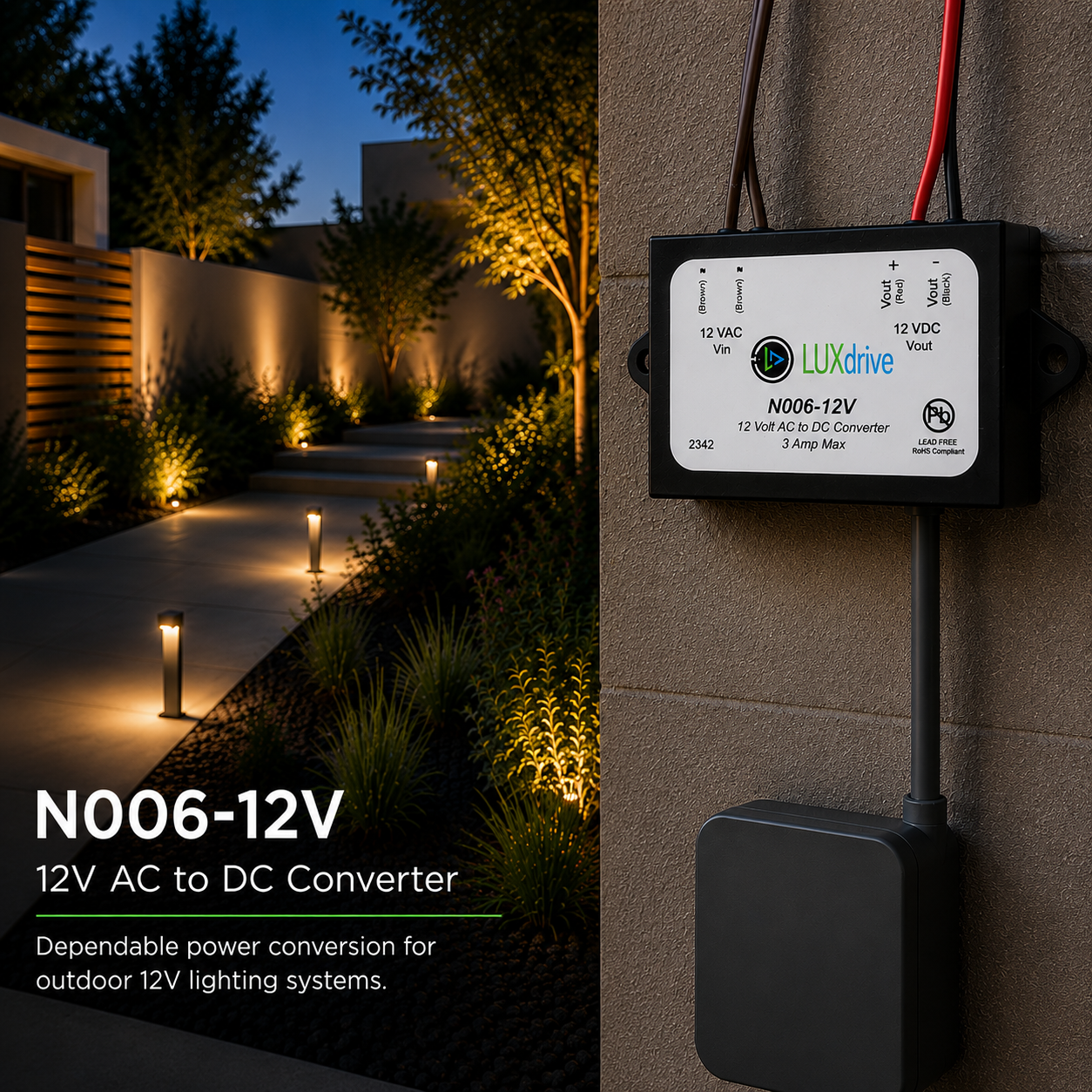

- Retrofitting existing landscape lighting systems
- Converting halogen or legacy AC systems to LED
- Pathway, garden, and architectural lighting
- Enabling DC-compatible fixtures in AC infrastructure
