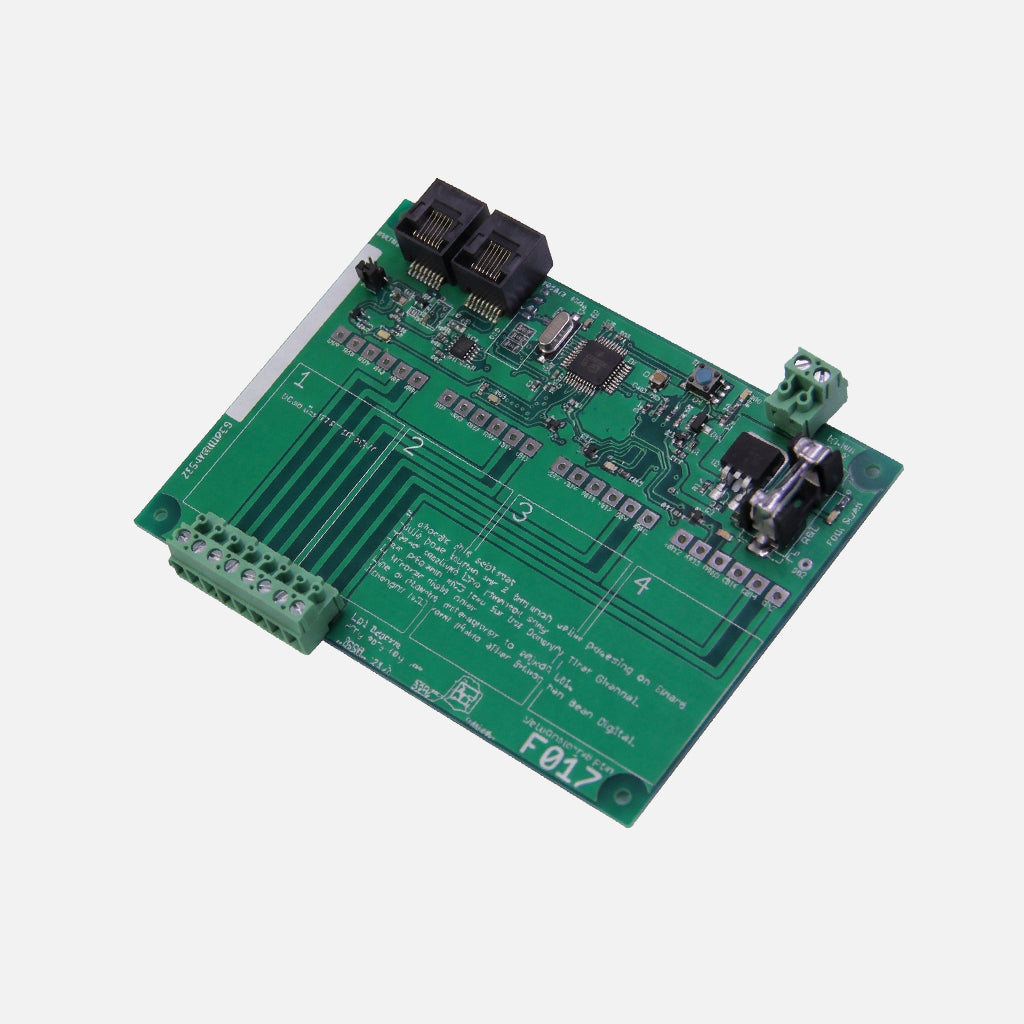

QuadBlock F017 – Four Channel DMX Driver Interface

1 3

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  F017

$65.98 USD
$0.00 USD $65.98 USD
Sale Sold out
The QuadBlock F017 – Four Channel DMX Driver Interface is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.
Product Datasheet
RoHS 3 Certificate
Warranty Information

Precision PWM Dimming for Multi-Channel LED Arrays

The QuadBlock F017 four-channel DMX driver interface utilizes a DC:DC buck topology to regulate power for high-current LED applications. When loaded with compatible drivers, it is designed to accept an input voltage range of 10 to 30 VDC, and delivers a flexible constant output current between 1000 and 2100 mA. Additionally, this module features PWM dimming capabilities, allowing for precise control over lighting intensity within a DMX system.

Features

  • Made in America design and quality

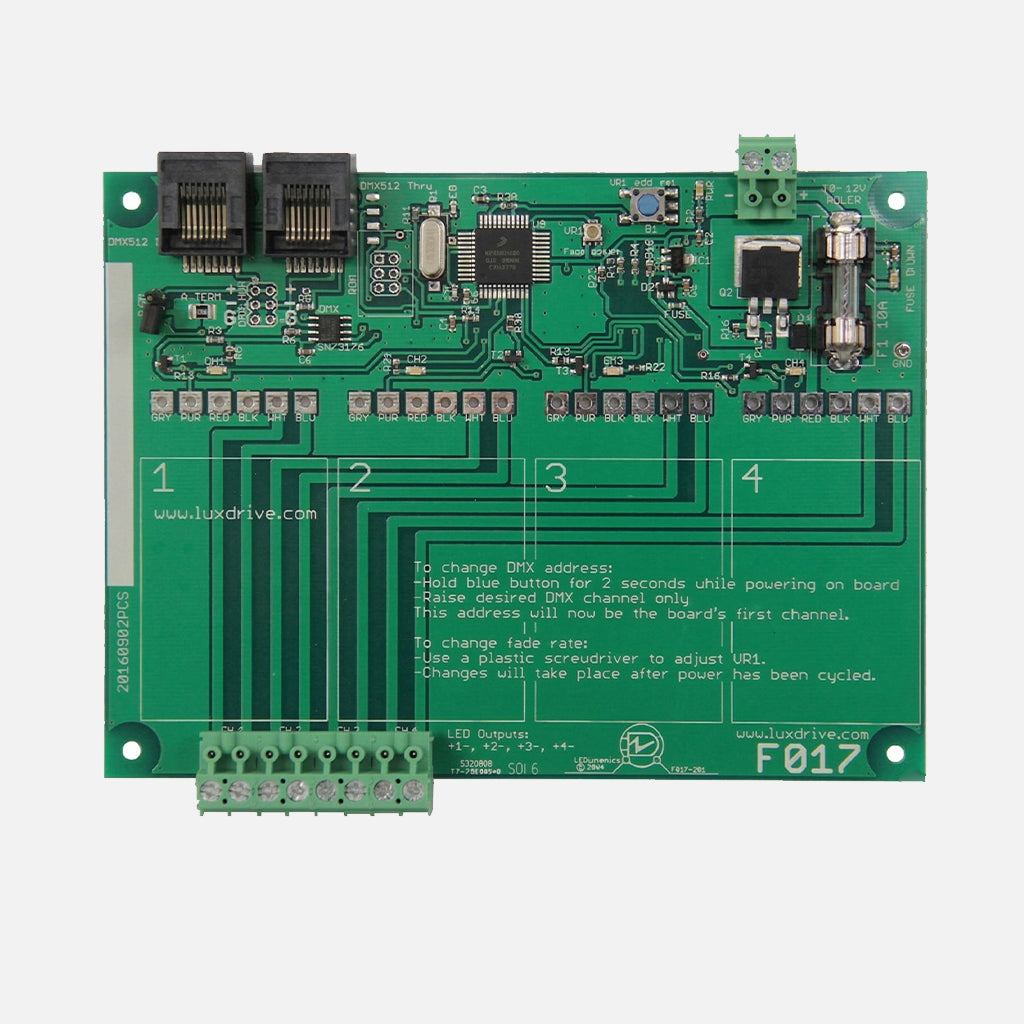

  • Simple one button DMX addressing
  • Channel activity indicators (LED)
  • Simple RJ45 connections for DMX
  • Removable terminal blocks for power & outputs

QUICK SPECS

  • One to four control channel capability
  • BuckBlock A009 compatible (sold separately)
  • FlexBlock A011 compatible (sold separately)
  • USITT DMX-512/1990 Compatible

Applications

  • Powering & controlling LED arrays
  • Area lighting & control systems
  • Architectural lighting systems
  • Theatrical & production lighting systems
  • RGBW fixtures & systems
  • Computer control interface
  • Accent lighting control
  • Landscape lighting control

Technical Specifications

Parameter Specification
Input Voltage: 10 to 30 VDC
Channels: 4
Compatible Drivers: 1 BuckBlock A009
FlexBlock A011
Connection: RJ45

1 Compatible drivers are sold separately.
