Pulsar R20-3 - 20mm 3Up TIR Optic

Low-Profile 20mm PMMA Total Internal Reflection Optics

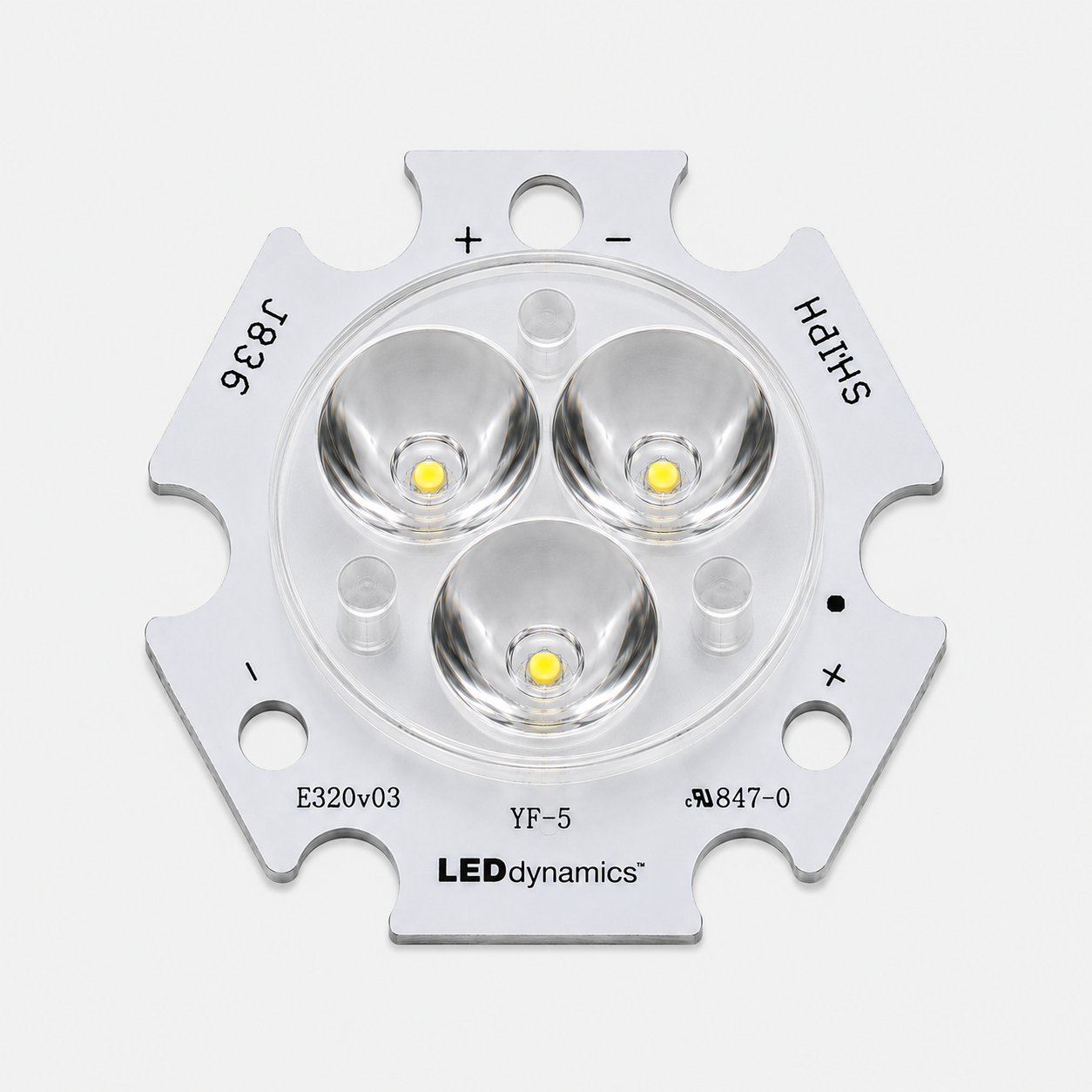

The Pulsar R20-3 from Fusion Optix is a series of precision-engineered 20mm diameter total internal reflection (TIR) 3-Up optics designed for high-efficiency beam control with mid-power LED packages including 2835, 3030, and similar emitters.

Optimized for uniform illumination, high optical efficiency, and compact luminaire integration, the Pulsar R20-3 family enables designers to achieve precise beam shaping across architectural, commercial, industrial, and specialty lighting applications.

The series includes multiple beam distributions and surface textures to support narrow spot, medium, wide, diffuse, and linear illumination requirements.

Designed for Mid-Power LED Platforms

Unlike optics originally developed for high-power single-die emitters, the Pulsar R20-3 series is engineered specifically for modern mid-power LED architectures.

The optics are optimized to deliver:

• Uniform beam appearance
• Reduced color separation
• High optical transmission
• Controlled glare
• Compact mechanical integration
• Consistent performance across multi-package arrays

Compatible LED footprints include:

• 2835
• 3030
• Similar mid-power LED packages

Key Features

• 20 mm (D) x 6.25mm (H)
• Optical grade PMMA
• Optimized for mid-power LED sources
• Multiple beam distributions available
• High optical efficiency
• Excellent beam uniformity
• Frosted, clear, ribbed, and structured surface options
• Suitable for narrow, medium, wide, and elliptical distributions
• Designed for scalable luminaire integration
