Indus A007 White Star Board

1 3

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  A007-LW827U3

$4.79 USD
$4.79 USD
Sale Sold out
Color Temperature (CCT)
LED Type
Volume discounts reflected in cart; contact Sales for large or custom orders.
Datasheet
RoHS 3 Certificate
Warranty Information

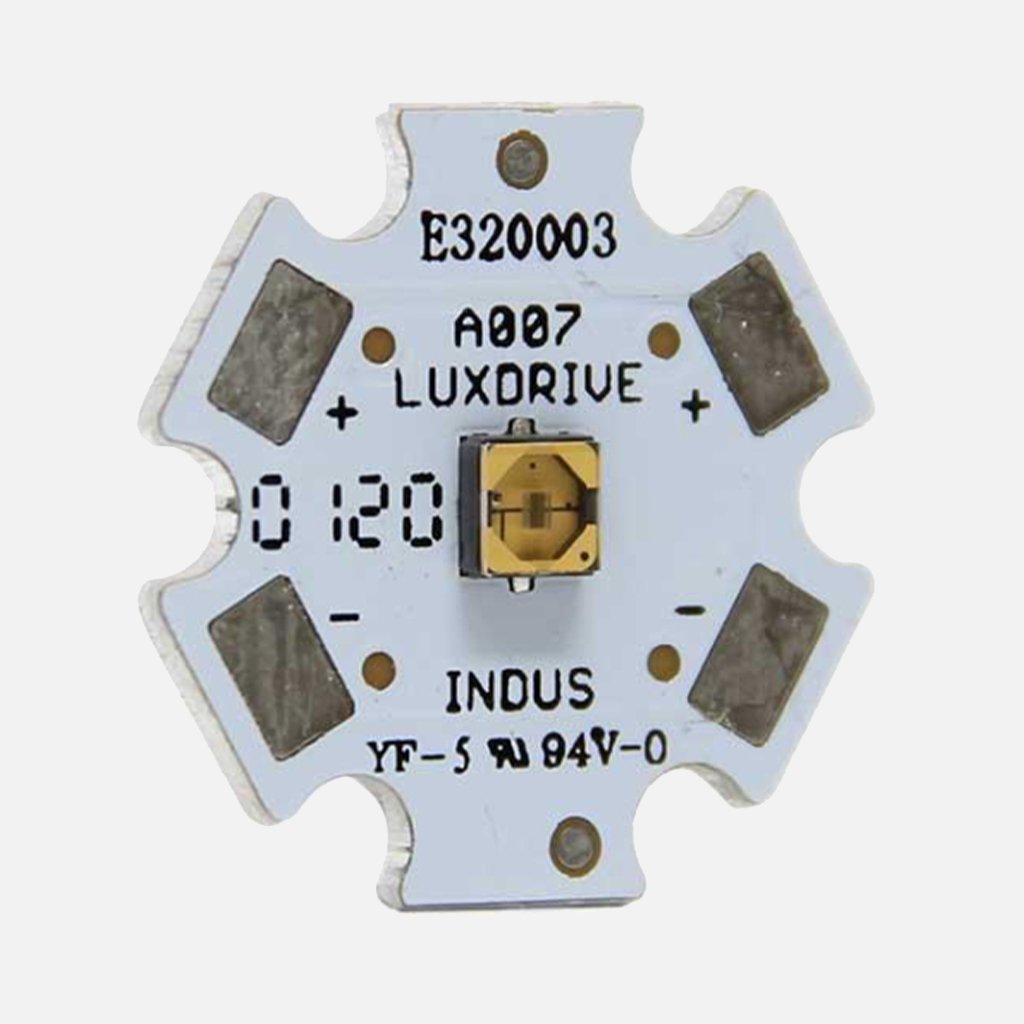

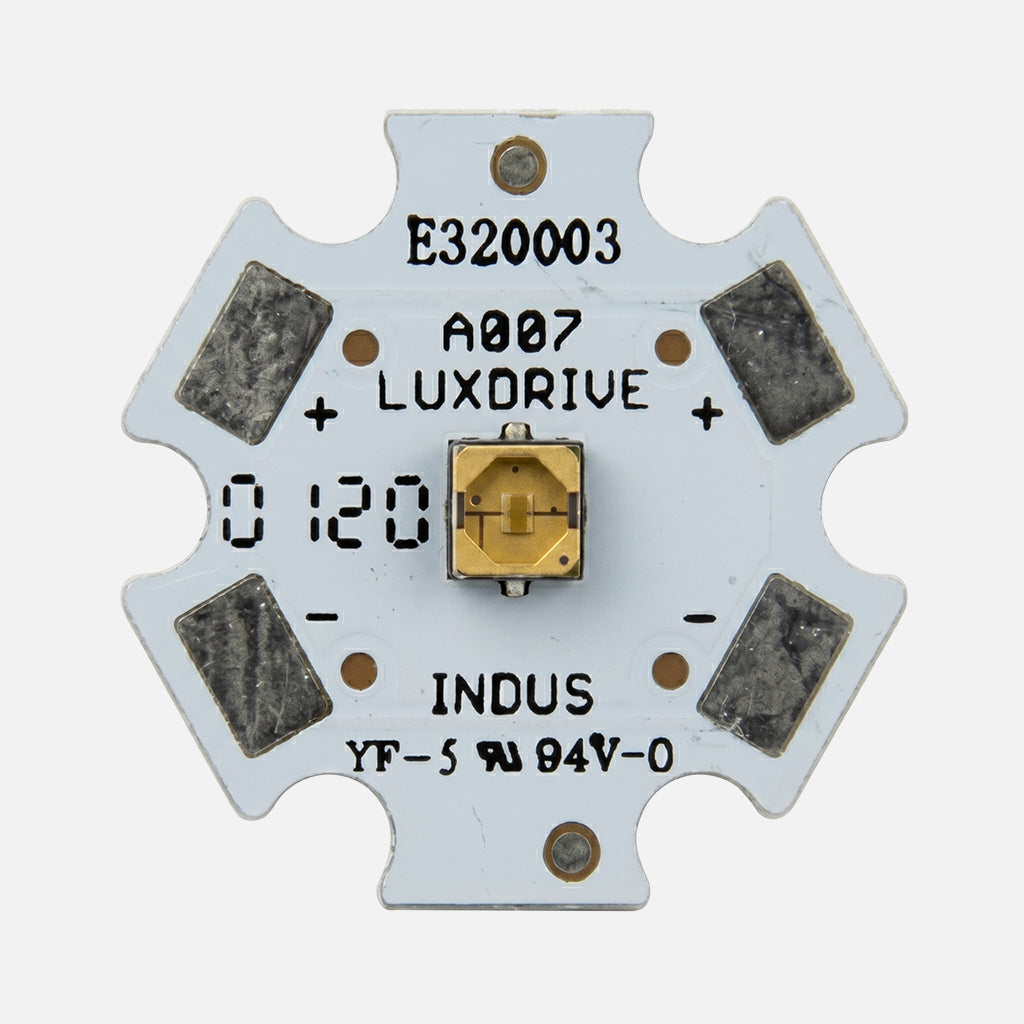

Versatile, High-Output Star Boards for Targeted Lighting with a Cree XLamp LEDs

The Indus A007 Star Board combines high brightness with ease of integration into fixtures and OEM applications. The LUXdrive™ Indus Star features a wide range of Cree XLamp emitters in a 1-up design on a 20mm star board. Inherent electrical isolation means thermal interface materials are not required to be electrically insulative. LEDdynamics strives to use the highest flux bins that are most readily available, please contact us if you require a specific bin.

Key Features

  • Made in America design and quality
  • Customization of specifications available
  • Available in range of colors and white
  • Beam sculpting optics available

QUICK SPECS

  • High-performance single Cree XLamp® emitter

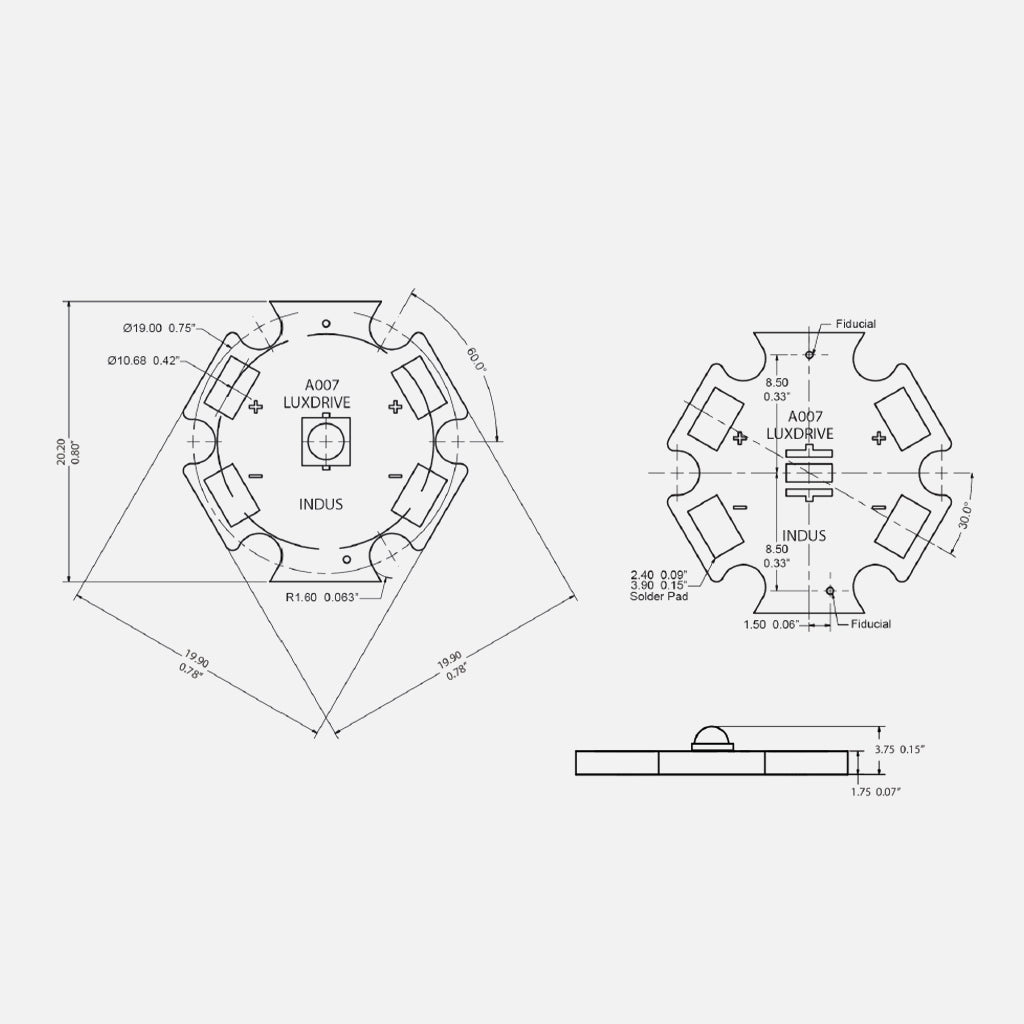

  • Electrically isolated 20mm aluminum star board
  • Compatible with beam-sculpting secondary optics

Applications

  • General Illumination
  • Display Case Lighting
  • Sign Lighting
  • Flashlights



Product Ordering Guide

Cree LED Part Number CCT Wavelength (NM) CRI Voltage (Vf) Lumens @350mA
XP-L2 A007-LW827U3 2700K ~ 80 2.82 330
XP-L2 A007-CL20830V2 3000K ~ 80 2.79 400
XP-L2 A007-CL20840V3 4000K ~ 80 2.79 420
XP-L2 A007-CL20750V4 5000K ~ 80 2.79 440
XP-L2 A007-CL20765V5 6500K ~ 80 2.79 460
XP-G3 A007-CG30827R4 2700K ~ 80 2.70 119
XP-G3 A007-CG30830R5 3000K ~ 80 2.70 139
XP-G3 A007-CG30840S2 4000K ~ 80 2.70 148
XP-G3 A007-CG30750S3 5000K ~ 70 2.70 156
XP-G3 A007-CG30765S4 6500K ~ 70 2.70 164
XP-G2 HE A007-CG2H830R5 3000K ~ 80 2.70 139
XP-G2 HE A007-CG2H840S3 4000K ~ 80 2.70 156
XP-G2 HE A007-CG2H750S3 5000K ~ 70 2.70 156
XP-G2 HE A007-CG2H765S4 6500K ~ 70 2.70 164
XP-E2 A007-E2827-Q2 2700K ~ 80 2.84 87
XP-E2 A007-E2830-Q3 3000K ~ 80 2.84 93
XP-E2 A007-E2740-Q4 4000K ~ 70 2.84 114
XP-E2 A007-E2750-Q4 5000K ~ 70 2.84 156
XP-G3 A007-CG30PHR32 Photo Red 645 ~ 1.99 500
XP-G3 A007-CG30ROYF4 Royal Blue 451 ~ 2.79 730
XP-E2 A007-CE20AMBP4 Amber 585-595 ~ 2.18 80.6
XP-E2 A007-CE2BLUM3 Blue 465-485 ~ 2.85 45.7
XP-E2 A007-CE20FAR27 Far Red 720-740 ~ 1.85 375
XP-E2 A007-CE20GRNR3 Green 520-535 ~ 2.70 122
XP-E2 A007-CE20PCAQ5 PC Amber ~ ~ 2.94 107
XP-E2 A007-CE2PHR30 Photo Red 650-670 ~ 2.05 450
XP-E2 A007-CE20REDP3 Red 620-630 ~ 2.18 73.9
XP-E2 A007-CE20RDOQ5 Red-Orange 610-620 ~ 2.18 107
XP-E2 A007-CE20ROY37 Royal Blue 450-465 ~ 2.96 450


1 = Values specified @350mA, Tj 25°C – for more specs, visit emitter data sheet: XP-L2, XP-G3, XP-G2 HE, XP-E2
2 = Photo Red, Far Red, and Royal Blue are binned by radiometric power. All other colors are binned by luminous flux.
Cree XP-L2 is tested @ 1050mA, Tj 85°C
3 = RGB LED boards are built without the 0 ohm jumpers connecting the LEDs in series, each LED is individually driven so that you can RGB color mix.
4 = All specifications are subject to change without prior notification.



Specific Maximum Ratings

LED Series DC Current (mA) Typ. Viewing Angle Thermal Resistance (°C/W)*
Cree XP-L2 3000 125° 1.6°
Cree XP-G3 - Whites 2000 125° 4°
Cree XP-G3 - Photo Red 1500 125° 3.5°
Cree XP-G3 - Royal Blue 2000 130° 3°
Cree XP-G2 HE 2000 125° 4°
Cree XP-E2 - Whites 1500 110° 6.8°
Cree XP-E2 - Amber 1500 130° 8.5°
Cree XP-E2 - Blue, Royal Blue 1200 135° 6.7°
Cree XP-E2 - Far Red 1500 140° 7.5°
Cree XP-E2 - Green 1500 135° 10°
Cree XP-E2 - PC Amber 1500 105° 6.5°
Cree XP-E2 - Red, Photo Red, Red-Orange 1500 130° 7.5°


*LED junction to bottom of starboard (MCPCB), measured in °C/W



Accessory Ordering Detail

Category Part Number Description Beam Angle Count
Optics CO-10003 Plain Tight 12° ~
Optics CO-10138 Frosted Narrow 14° ~
Optics CO-10003-15 Ripple Medium 29° ~
Optics CO-10139 Frosted Medium 21° ~
Optics CO-10003-25 Ripple Wide 41° ~
Optics CO-10140 Frosted Wide 31° ~
Optics CO-10003-L25 Elliptical 44 x 12° ~
Optics CO-10734 Universal Holder ~ ~
Thermal A001-010H Thermal Adhesive Tape ~ 10
Thermal A001-150H Thermal Adhesive Tape ~ 150
