BuckPuck 302xA - AC Buck Driver

1 4

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  302xA

$16.14 USD
$0.00 USD $16.14 USD
Sale Sold out
The BuckPuck 302xA - AC Buck Driver is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.
Product Datasheet
RoHS 3 Certificate
Warranty Information

Versatile LED Control with 0–10V Dimming and TTL/CMOS Logic Compatibility

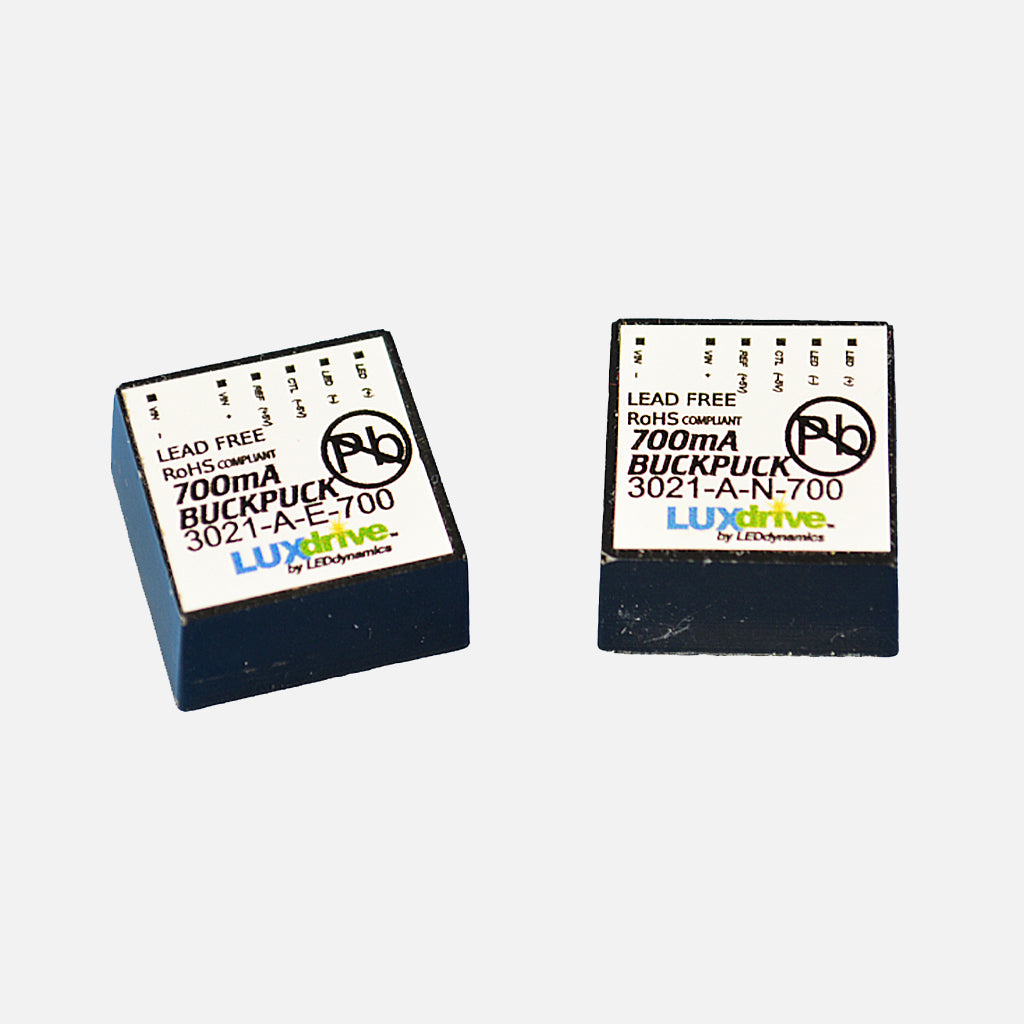

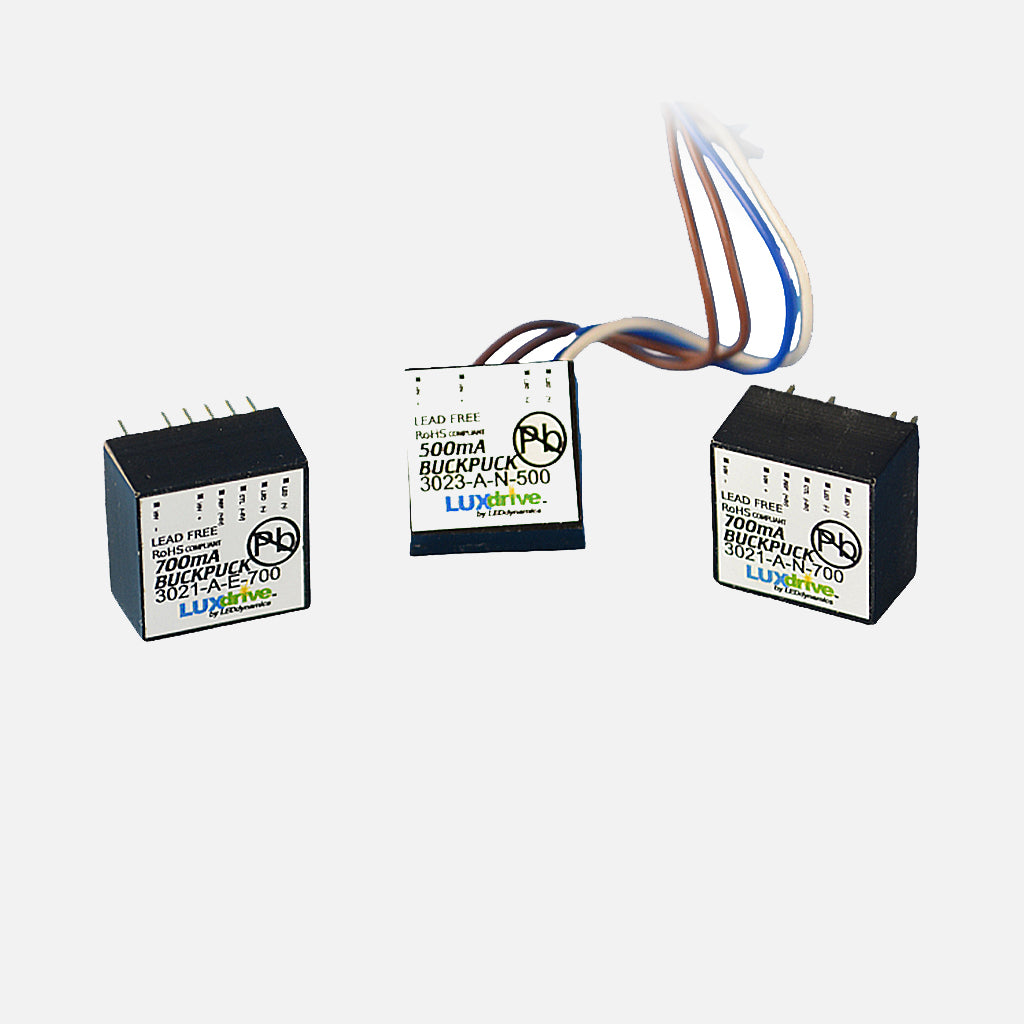

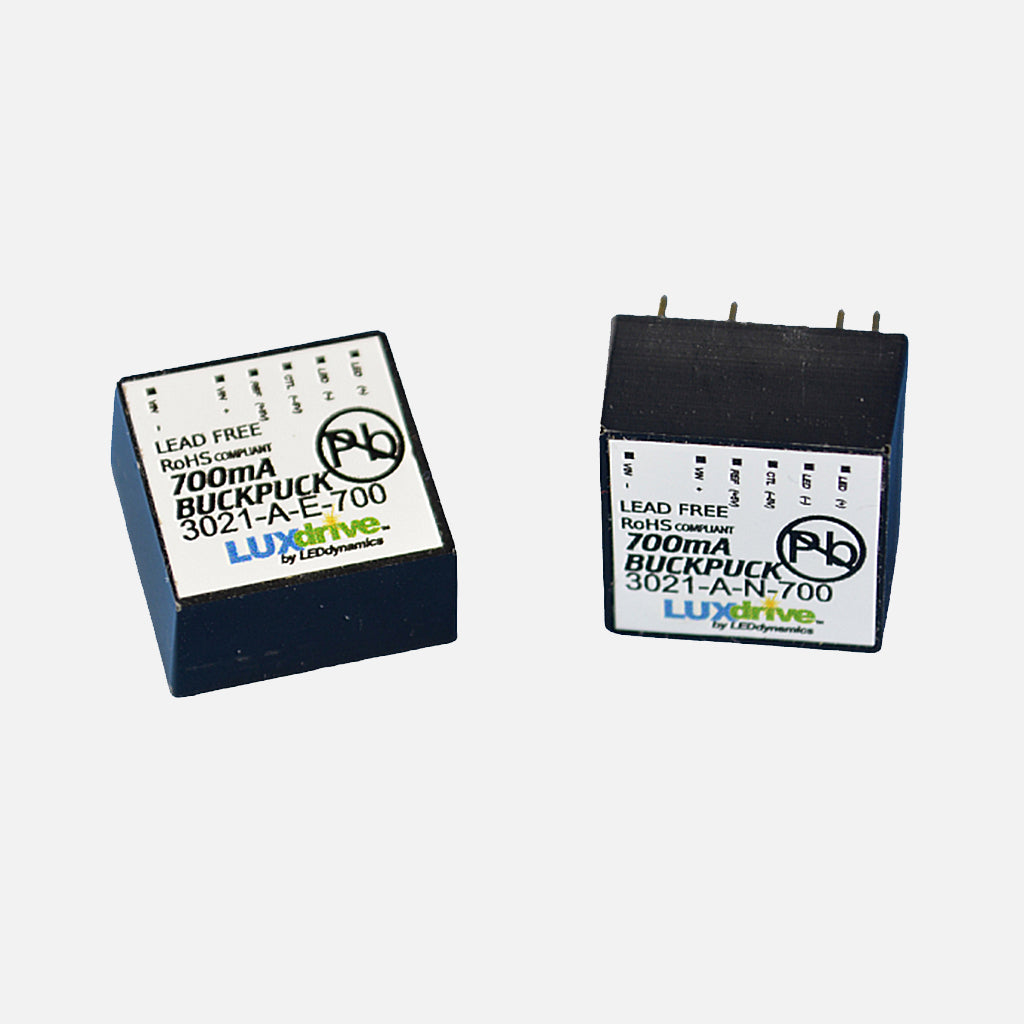

The BuckPuck 302xA Buck Driver is a high-efficiency line of true current-regulated LED drivers available in AC input configuration that utilizes buck topology to deliver constant outputs ranging from 350mA to 1000mA. These compact modules are designed to power high-brightness LED arrays without the need for external current-limiting resistors or additional heat sinking by varying the output voltage to maintain a specific current. Additionally, the line supports versatile integration with features such as 0–10V dimming, TTL/CMOS logic-level control, and fast response times suitable for flashing or strobe applications.

Downloads

QUICK SPECS

  • AC input voltage up to 24V
  • 350mA, 500mA, 700mA, or 1.0A constant current output
  • Optional on-board trim adjustment (40 - 110%)

Ordering Information

Part Number DC Input AC Input On-Board Trim Control/Dimming Connection Type
3021-D-N-xxxx 5-32V no no no 7-Pin SIP (4 Pins)
3021-D-E-xxxx 7-32V no no yes 7-Pin SIP (6 Pins)
3021-D-I-xxxx 7-32V no yes yes 7-Pin SIP (6 Pins)
3023-D-N-xxxx 5-32V no no no 4 Wires
3023-D-E-xxxx 7-32V no no yes 6 Wires
3023-D-E-xxxxP 7-32V no no yes 6 Wires
3021-A-N-xxxx no 7-24Vrms no no 7-Pin SIP (4 Pins)
3021-A-E-xxxx no 7-24Vrms no yes 7-Pin SIP (6 Pins)
3021-A-I-xxxx no 7-24Vrms yes yes 7-Pin SIP (6 Pins)
3023-A-N-xxxx no 7-24Vrms no no 4 Wires

*All specifications are subject to change without prior notification

Features

  • Made in America craftsmanship and quality
  • Customization of specifications available
  • Output short circuit & open circuit protection

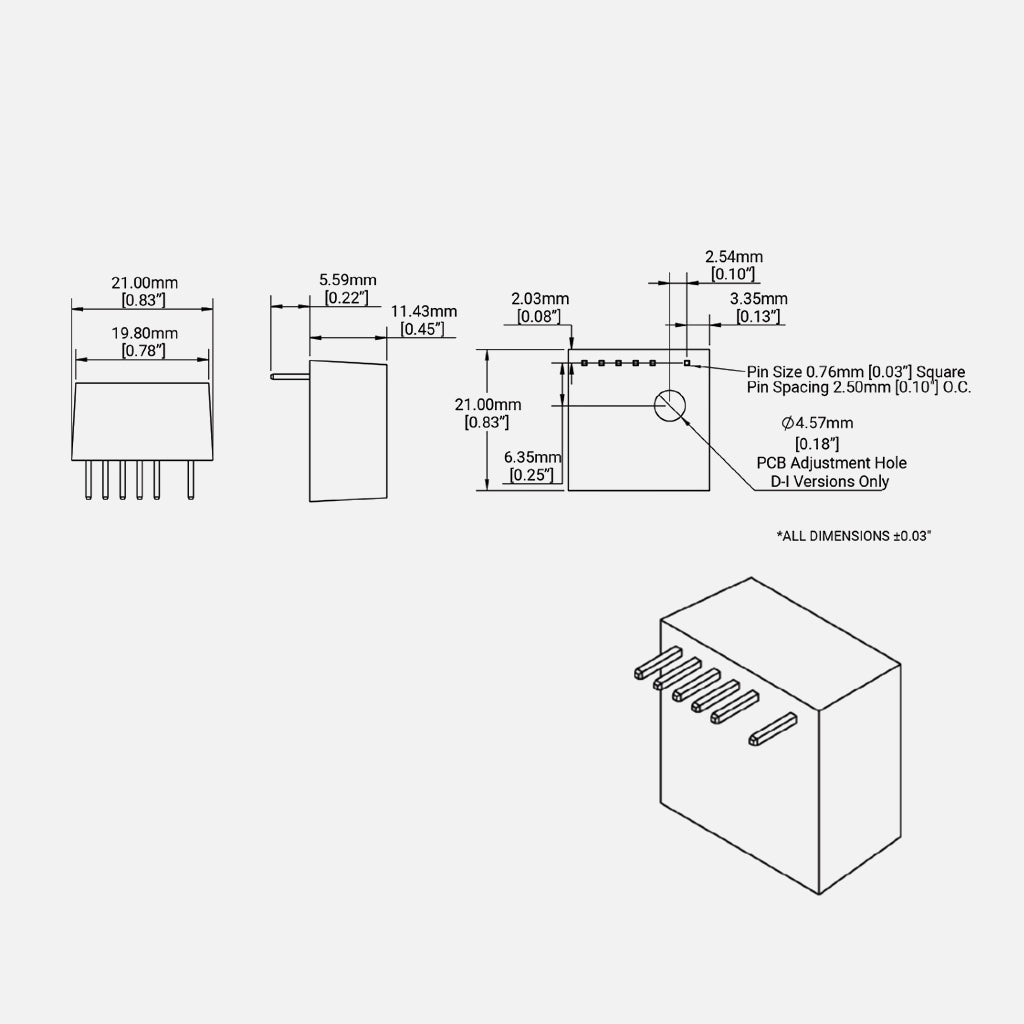

  • Extremely small form factor (0.83”x 0.83”x 0.43”)

Applications

  • Solar Lighting
  • Architectural Lighting
  • Point of Purchase Lighting
  • Automotive & Marine Lighting
  • Flash & Strobe Lighting
  • Track Lighting
  • Signal & Marker Lighting
  • Sign & Channel Letters

Additional Downloads

Accessory Ordering Detail

PART NUMBER COMPATIBILITY DIMMING POTENTIOMETER CONNECTION
3021HE 3021-A-E
I-xxx4015-D-E
I-xxx		 None None 6 Pin Connector to 6 Wire Lead
3021HEP 3021-A-E
I-xxx4015-D-E
I-xxx		 Yes Yes 6 Pin Connector to 6 Wire Lead
