3ft (1m) LED Undercabinet Strip Kit

1 3

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  1M-STRIP-KIT

$56.29 USD
$0.00 USD $56.29 USD
Sale Sold out
Channel Type
Dimming
Volume discounts reflected in cart; contact Sales for large or custom orders.
Datasheet
RoHS 3 Certificate
Warranty Information

Brilliant Seamless Lighting, Made Plug-and-Play Simple

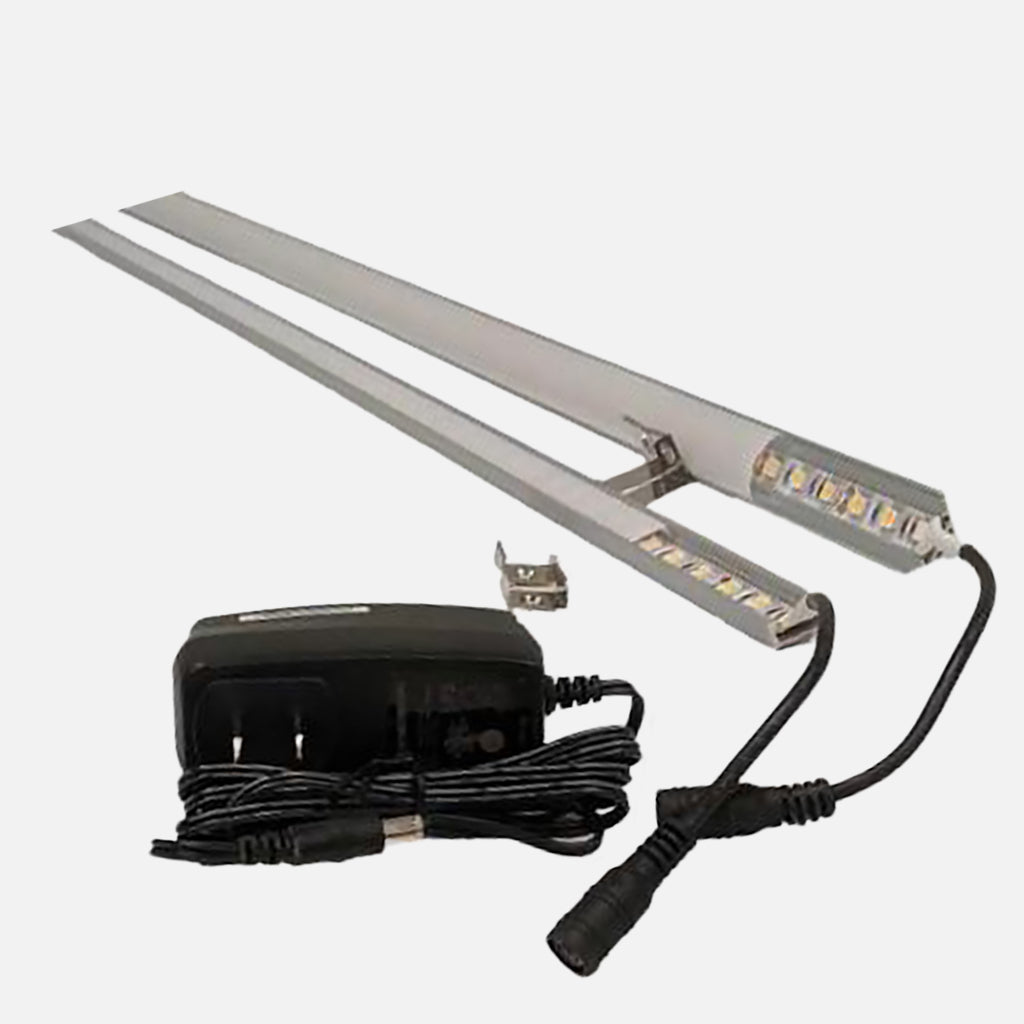

The 3ft (1m) LED Undercabinet Strip Kit is a fully functioning lighting solution that can be mounted under cabinets or to any surface desired. The kit comes as a finished assembly, only set-up needed is to mount wherever desired and plug into the nearest wall receptacle.

This linear fixture uses a high-density LUMAFlex LED strip with 60 LEDs evenly placed along the run. The tightly packed LEDs not only boost Lumens over 1000, but also help provide a constant, smooth light along the entire run.

Features

  • Plug and Play LED Strip fixture!
  • Remote Control Dimmer Option
  • Powerful Warm White 3000K

QUICK SPECS

  • Length: 1 meter
  • Lumens: >1000
  • Includes 60-LED/M Strip, Track/Lens & Power

Technical Specifications

Parameter Specification
LENGTH: 1 Meter (39.37-inches)
COLOR TEMPERATURE: Bright Warm-White
LUMENS: Over 1000
APPLICATIONS: Undercabinet & Task Lighting
INCLUDES: 60-LED/M Strip, Track/Lens & Power
CONTROL OPTIONS: On-Off Switch and/or RF Dimming
MOUNTING: Track includes mounting clips
TRACK OPTIONS: Flat or Angle Track available

Aluminum Track Options

There are two options when it comes to the aluminum extrusion: Straight or angle track. The size differences are to the right, but basically this will determine if your light is facing straight in one direction or if it faces at an angle.

The track options both come with 2 mounting clips for easy mounting. Screw the clips an equal distance apart along where the strip should be mounted and the track will then clip right in.

Easy control of your light

This kit comes with a 12V wall mount power supply. This will easily plug into any standard wall outlet and then plug into the fixture on the other end with a 2.1mm barrel plug. This power supply could go to a switched outlet that you simply turn on/off or unplugging the device might work for you if this is a simple work light.

However, we know that ease of control with lights is important so we offered some other options that you can choose from:

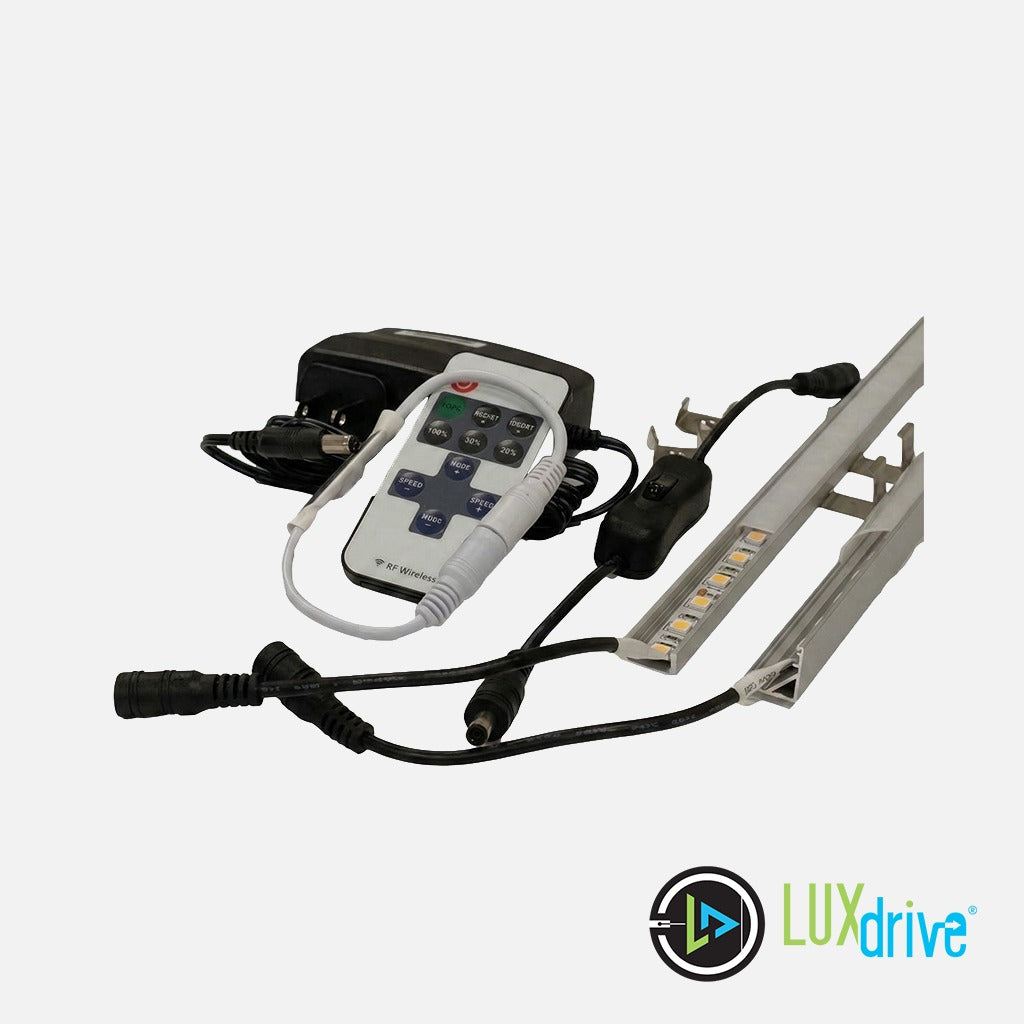

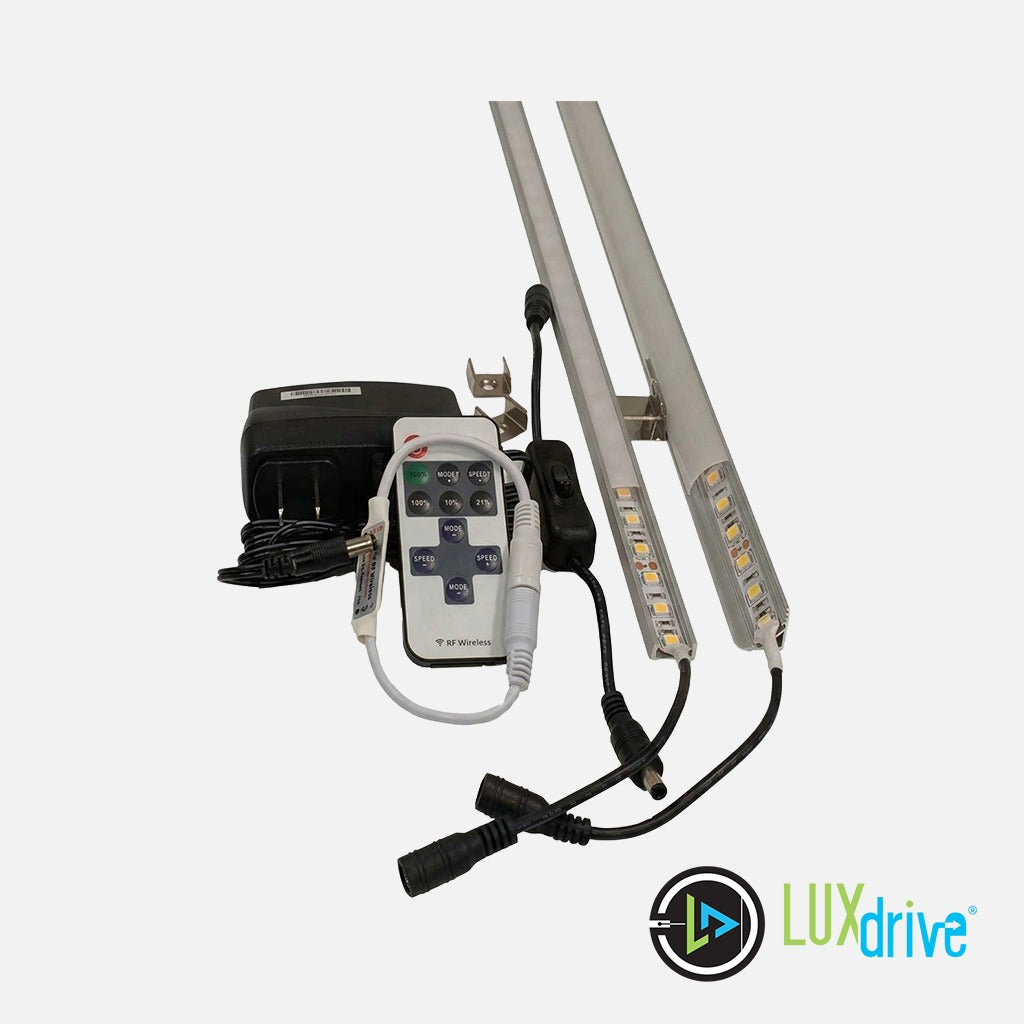

  1. Remote Control Dimmer – Control your lights with the click of a button. Remote receiver is super small and plugs in easily between power supply and light.
  2. Toggle on/off Switch – This small switch can be plugged in between your power supply and strip. It will provide an easy push switch to turn the lights on and off when desired.
  3. These options can be combined so you can switch power off completely with the switch at times or use the remote controller as well.
