MicroPuck 2009 - DC/DC Buck | Boost | Buck-Boost Driver

1 3

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  2009

$17.76 USD
$0.00 USD $17.76 USD
Sale Sold out
Output Current (mA)
Volume discounts reflected in cart; contact Sales for large or custom orders.
Product Datasheet
RoHS 3 Certificate
Warranty Information

Reliable Constant Current for Battery-Powered LED Upgrades

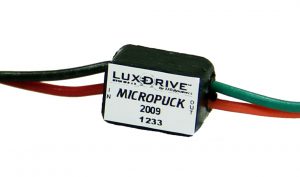

The MicroPuck 2009 DC:DC LED driver is capable of operating in Buck, Boost, or Buck-Boost topologies, allowing it to maintain regulated current regardless of whether the input voltage is higher or lower than the load. It is specifically designed for very low voltage applications, accepting a minimal input range of 0.8 to 3 VDC. The unit provides a constant current output ranging from 350 mA to 600 mA but does not feature integrated dimming capabilities.

Key Features

  • Made in America quality and design
  • Customization of specifications available
  • Epoxy encapsulated against harsh and moist environments

QUICK SPECS

  • DC input voltage up to 3V
  • 350mA, 400mA or 600mA constant current output
  • Extremely small form factor (0.45”x 0.3”x 0.26”)

Applications

  • Battery Lighting Applications
  • Drop-in Replacement Bulbs
  • Head-Lamps / Camp Light
  • Portable Lighting & Flashlight
  • Pen Lights
  • Solar Lighting
  • Desk & Reading Lamps
  • Road Markers


Ordering Information

Product Input Voltage Drive Current Control Connection
2009 0.8 to 3 VDC 350 mA None 4 Wire Lead
2009-HI 0.8 to 3 VDC 400 mA None 4 Wire Lead
2009-SHO 0.8 to 3 VDC 600 mA None 4 Wire Lead
