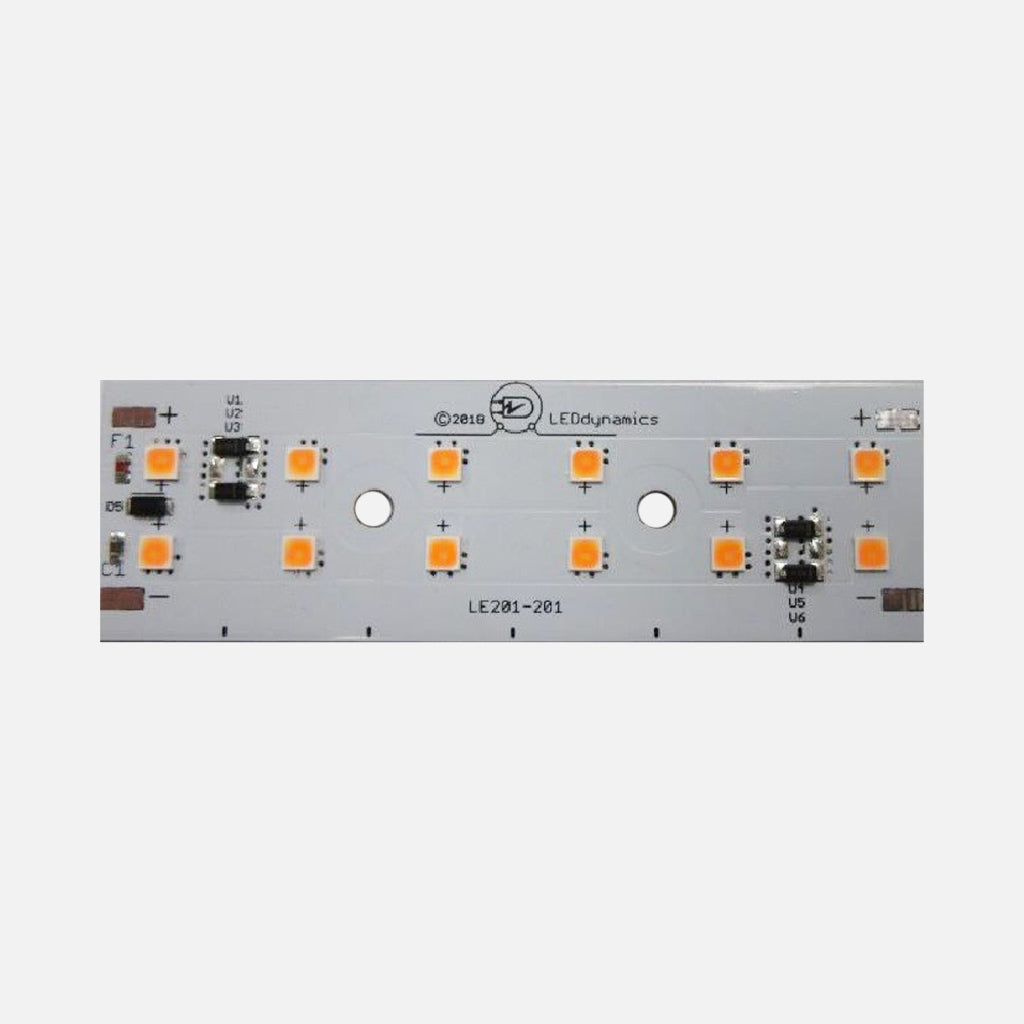

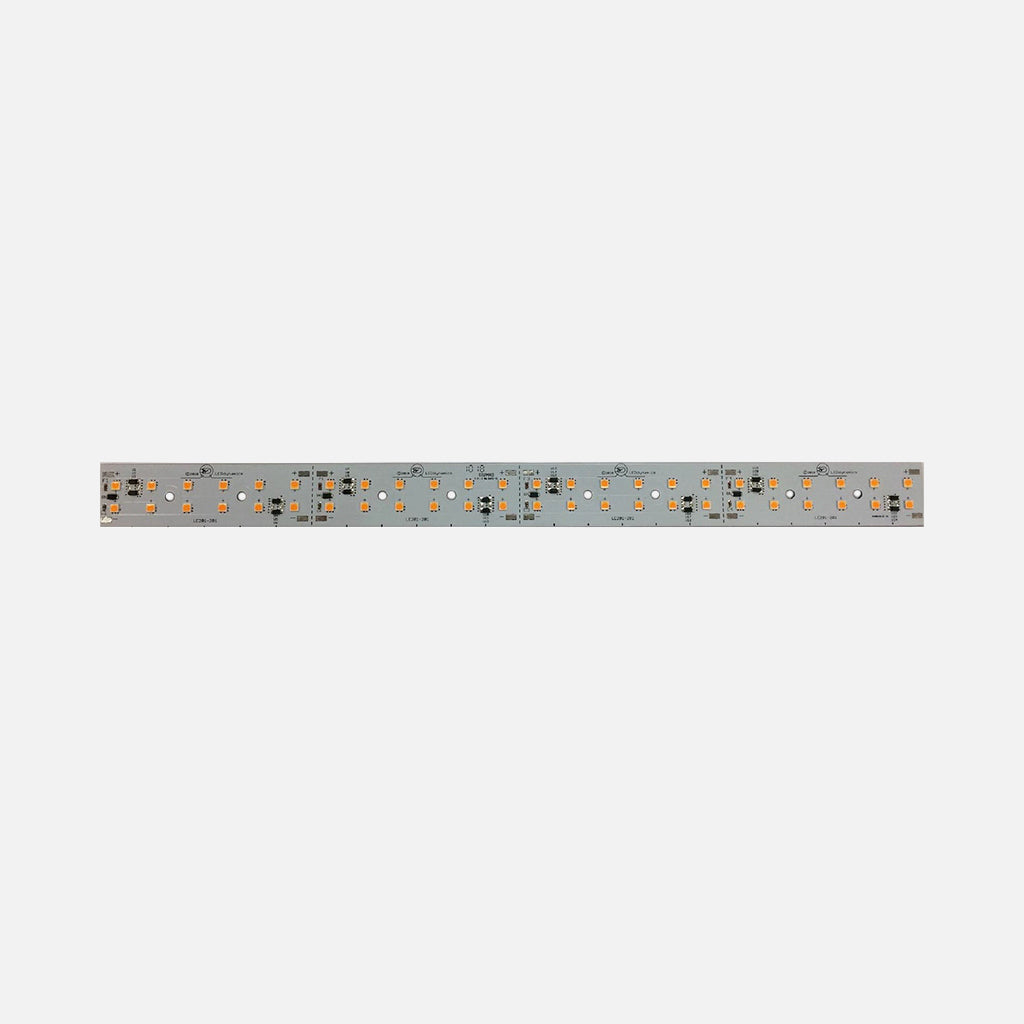

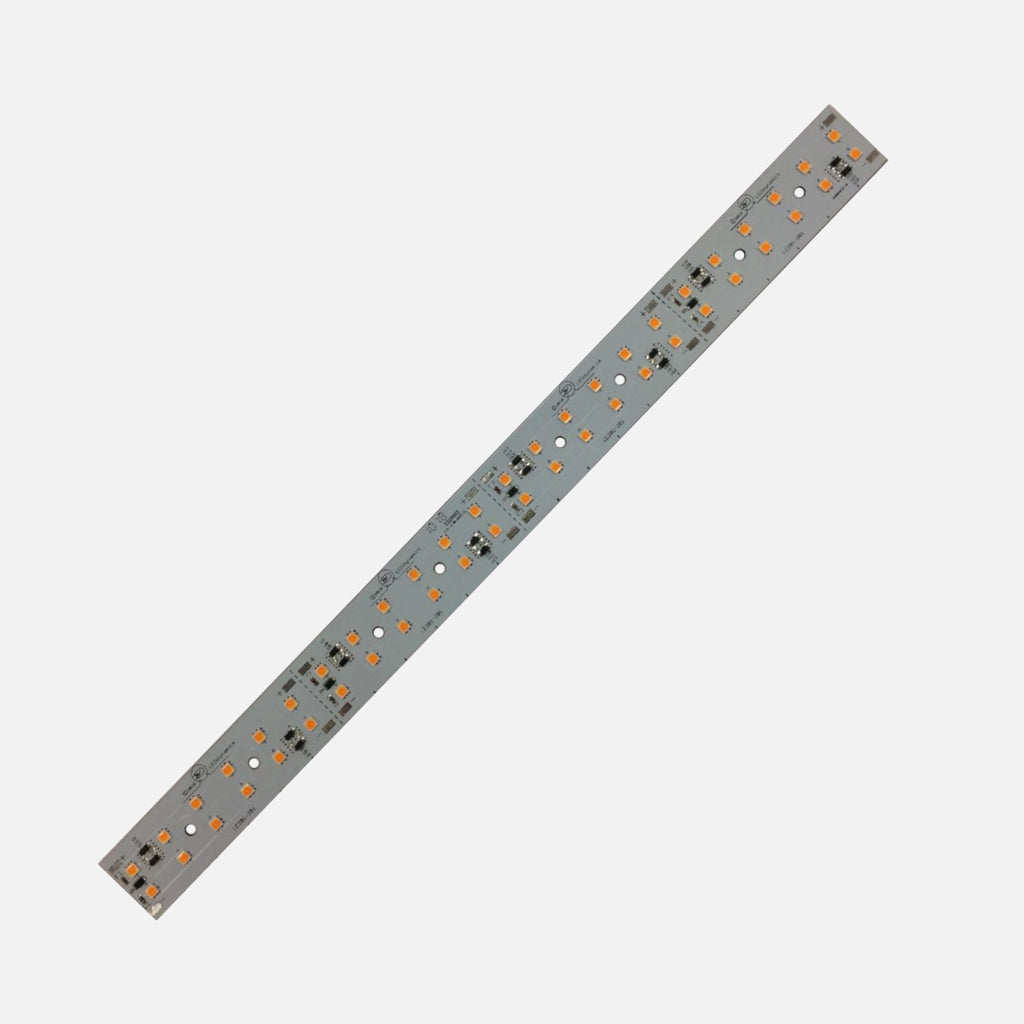

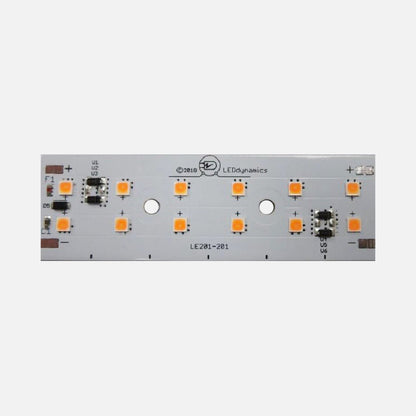

DUOstrip I033 - LED Light Engine (24V)

1 5

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  I033-N7H182740

$25.20 USD
$0.00 USD $25.20 USD
Sale Sold out
LED Color
The DUOstrip I033 - LED Light Engine (24V) is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.
Product Datasheet
RoHS 3 Certificate
Warranty Information

High-Density Flexible Light Engines with 48 LEDs and 1100 Lumens Per Foot

The LUXdrive™ DuoStrip I033 high brightness light engine strip has 48 LEDs per foot, delivering over 1,100 lumens with 24VDC. Its versatile design allows for easy cutting every three inches, enabling individual segments to function as standalone light engines, while daisy-chaining boards up to 20 feet in total length provides maximum adaptability for various needs and applications.

See the L045 DUOstrip For the 12 VDC variant, with multiple output current options.

Key Features

  • Nichia LEDs
  • Cuttable and End-to-End Connectable
  • Multiple CCTs and colors available

QUICK SPECS

  • High density 48 LEDs per foot
  • Delivers over 1100 lumens per foot
  • 24 Vdc Input – No Driver Required!
  • Field cuttable every three inches


Ordering Detail

Part Number CRI CCT Typ. Drive Current
I033-N7H182740 80+/90+ 2700K 40mA
I033-N7H183040 80+/90+ 3000K 40mA
I033-N7H183540 80+/90+ 3500K 40mA
I033-N7H186540 80+/90+ 6500K 40mA
I033-N7G0BLU40 ~ BLU 40mA
I033-N7G0GRN40 ~ GRN 40mA
I033-N7G0RED40 ~ RED 40mA
I033-N7G0YEL40 ~ YEL 40mA

1CRI does not apply to color LEDs.
2Typical LED drive current is 40mA



Applications

  • Track Lighting
  • Architectural Lighting
  • Cabinet & Display Case
  • Sign & Channel Letters
