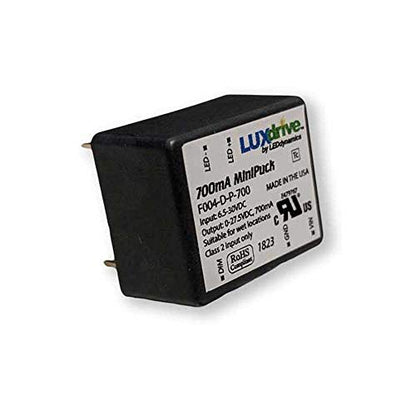

MiniPuck F004 - DC/DC Buck Driver

1 7

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  F004-D-P-350

$20.48 USD
$0.00 USD $20.48 USD
Sale Sold out
Output Current (mA)
Volume discounts reflected in cart; contact Sales for large or custom orders.
Product Datasheet
RoHS 3 Certificate
Warranty Information

Flexible Voltage Compatibility for Diverse Projects

The MiniPuck F004 DC:DC LED driver utilizes a buck topology to provide regulated power for LED lighting applications. Capable of operating within an input voltage range of 6.5 to 30 VDC, it delivers a constant output current between 350 mA and 700 mA. Furthermore, this module features PWM dimming support, enabling precise control over lighting intensity.

Key Features

  • Made in America design and quality
  • Customization of specifications available

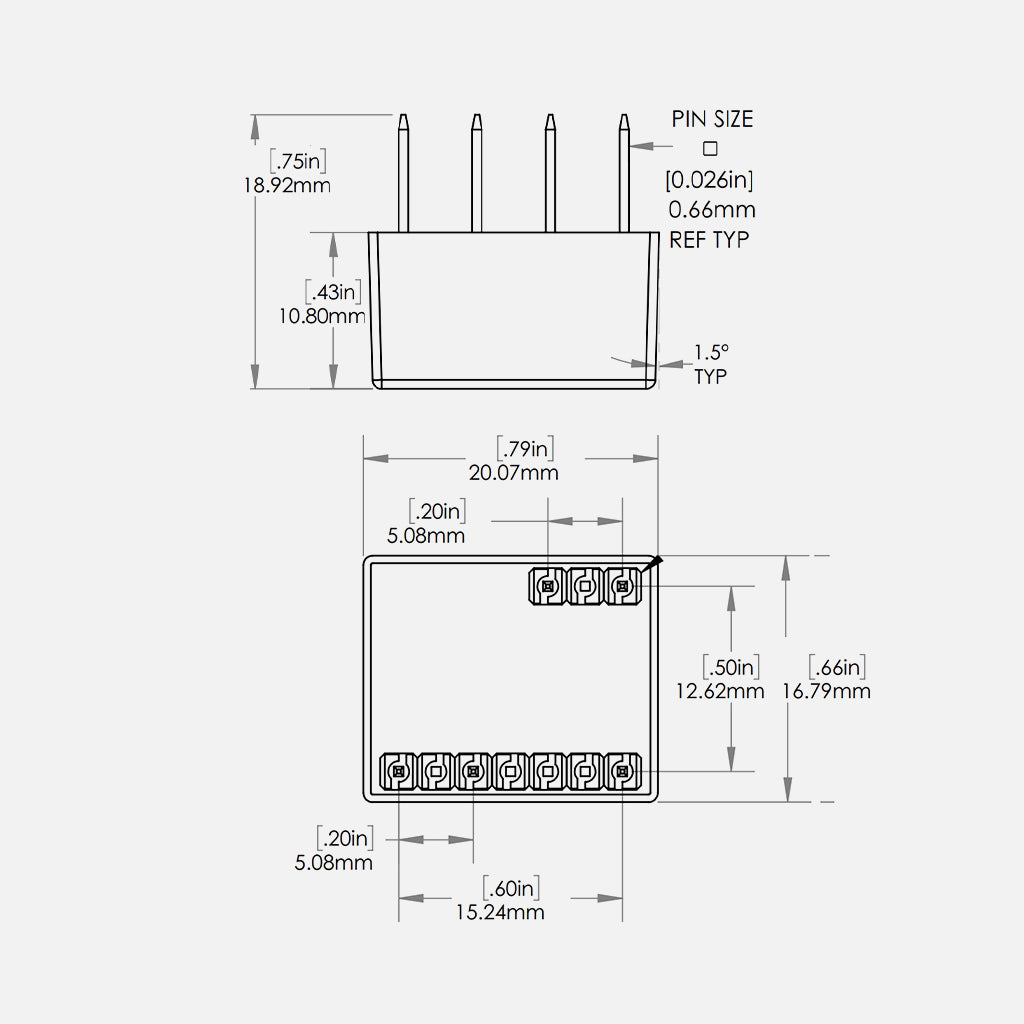

  • Small 0.79”x 0.66”.0.43” mechanical envelope
  • Output open circuit and over temperature protection

QUICK SPECS

  • DC input power up to 32V
  • 350, 500 and 700mA constant current output
  • PWM Control

Applications

  • Solar Lighting
  • Architectural Lighting
  • Point of Purchase Lighting
  • Automotive Lighting
  • Flash & Strobe Lighting

Ordering Information

Part Number Input Voltage Drive Current Control Connection
F004-D-P-350 6.5 to 32 VDC 350 mA PWM 5 Pin
F004-D-P-500 6.5 to 32 VDC 500 mA PWM 5 Pin
F004-D-P-700 6.5 to 32 VDC 700 mA PWM 5 Pin
