Features

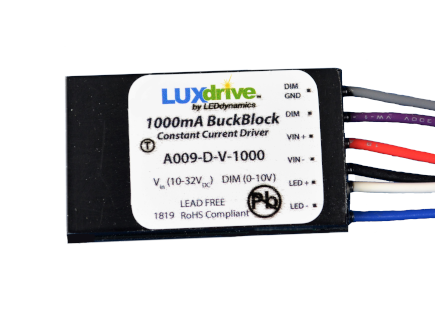

BuckBlock
  • Made in America quality and craftsmanship
  • DC input up to 32V
  • 1.0A, 1.4A, or 2.1A constant current output
  • Customization of specifications available
  • Continuous output short circuit and open circuit protection
  • Small 2.0” x 1.2” x 0.38” mechanical envelope
  • Input reverse polarity protection
  • 0-10V Dimming compatible

Download

Applications

Literature

BuckBlock A009 – A009_BuckBlock

  • Solar Lighting
  • Architectural Lighting
  • Point of Purchase Lighting
  • Marine Lighting
  • Signal & Marker Lighting
  • Track Lighting
  • Flash & Strobe Lighting
  • Cabinet & Display Case
  • Sign & Channel Letters

Specifications

ProductA009-D-V-1000A009-D-V-1400A009-D-V-2100
GeneralTopology:Buck
Input / Output:DC / DC
OutputDrive Current:1000 mA1400 mA2100 mA
Voltage:25.6 V24 V16 V
Current Accuracy:±10%
InputVoltage Range:10 - 32 VDC
Efficiency:90%
ControlDimmable:Yes
Type:0 - 10 V
ProtectionShort Circuit:Yes
EnvironmentOperating Temp:-40 to 80o C
Storage Temp:-40 to 125o C
Operating Case Temp:Max:-40 to 80o C
MechanicalConnector:18 AWG Wire Leads
Dimensions :2.0 x 1.2 x 0.375 in
Weight:1.22 oz
RegulatoryCompliance:RoHS
Warranty:2 Years

* All specifications are subject to change without prior notification.

Ordering Detail

Part Number Input Voltage On-board TrimDrive CurrentControlConnection
A009-D-V-100010 - 32 VDCNo1000 mA0 - 10 V6 Wire Lead
A009-D-V-14001400 mA
A009-D-V-21002100 mA
