Saiph J035 Color Star Board

1 3

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  J035-L1C1AMB

$6.56 USD
$6.56 USD
Sale Sold out
LED Color
Volume discounts reflected in cart; contact Sales for large or custom orders.
Product Datasheet
RoHS 3 Certificate
Warranty Information

Point-Source Precision: Professional 1-Up Luxeon C Star Boards for Targeted Lighting

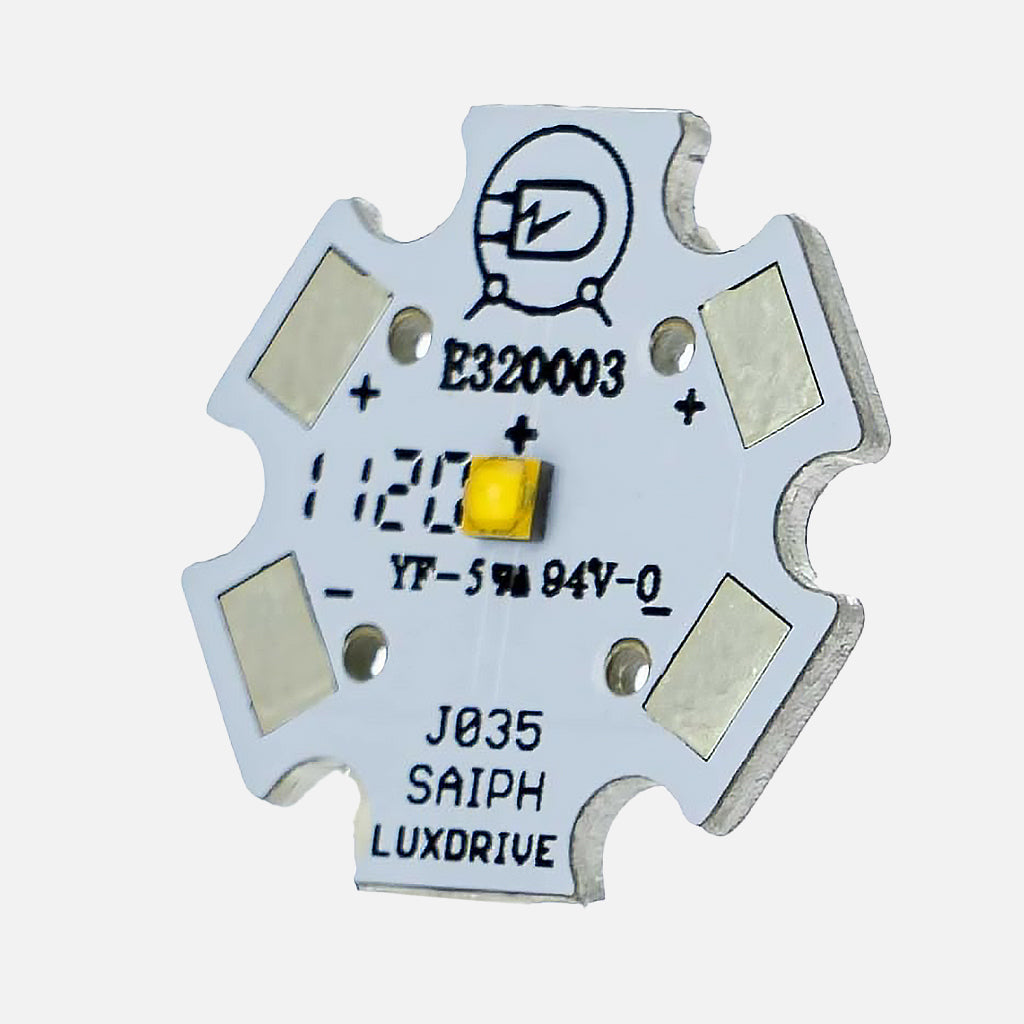

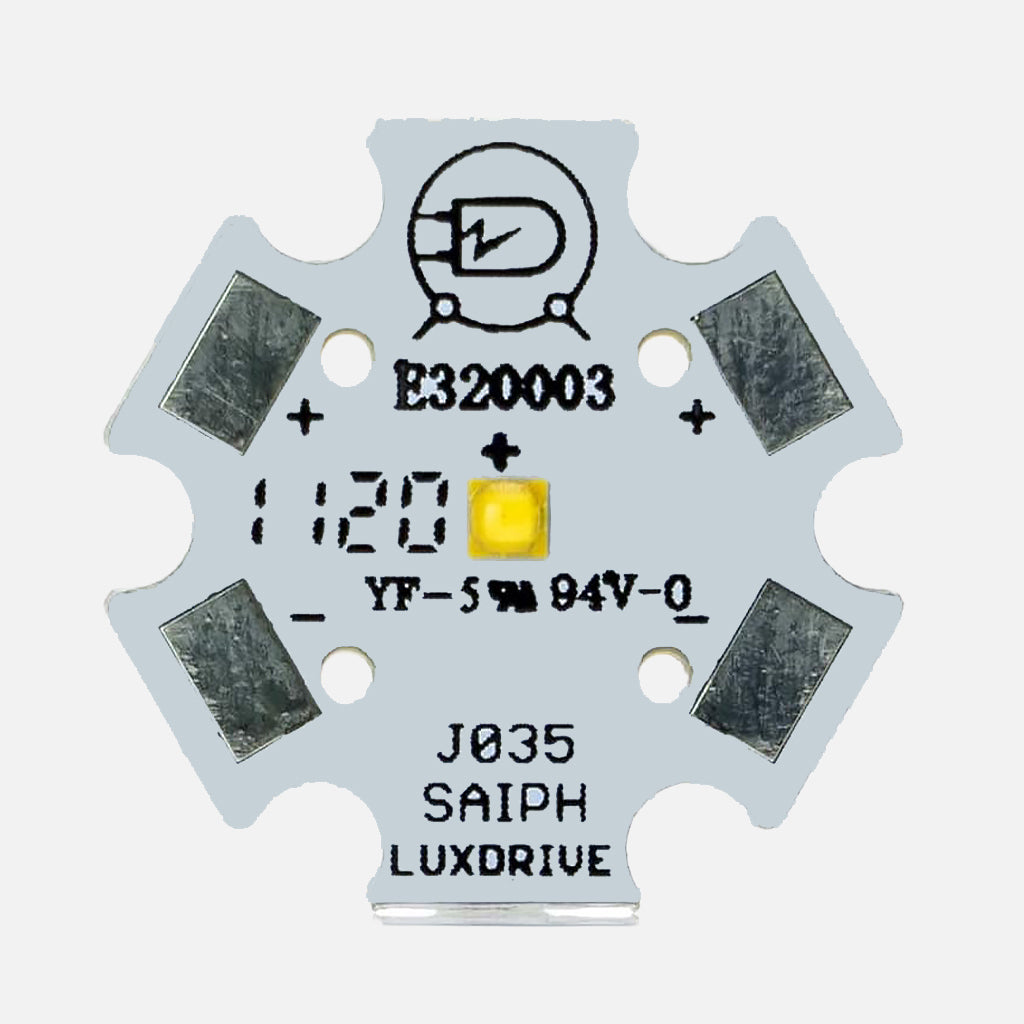

The Saiph Star J035 combines high brightness with ease of integration into fixtures and OEM applications. The LUXdrive™ Saiph Star features the Luxeon C emitter in a singular 1-up design on a 20mm star board. Inherent electrical isolation means thermal interface materials are not required to be electrically insulative. LEDdynamics strives to use the highest flux bins that are most readily available, please contact us if you require a specific bin.

Key Features

  • Made in America design and quality
  • Customization of specifications available
  • Available in range of colors and white
  • Beam sculpting optics available

QUICK SPECS

  • High-output single Luxeon C LED emitter

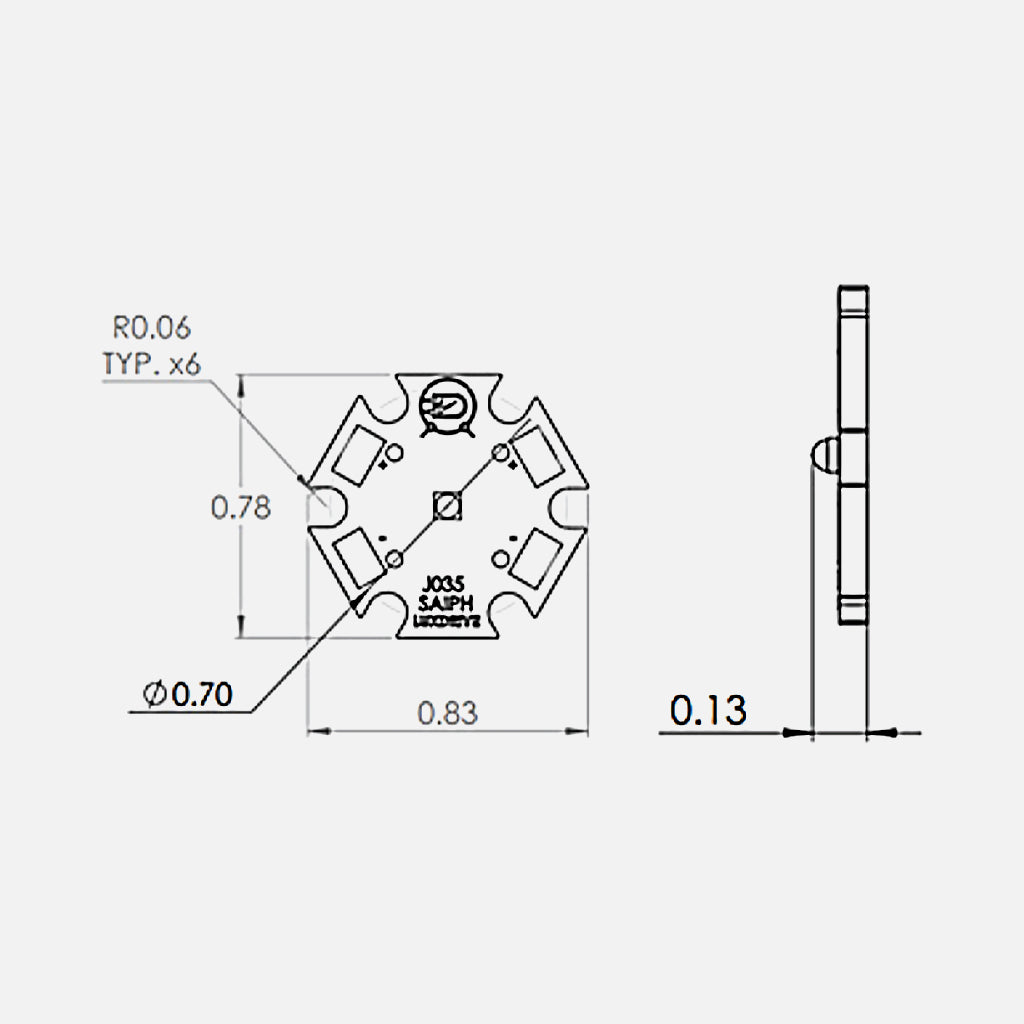

  • Electrically isolated 20mm aluminum star board
  • Compatible with beam-sculpting secondary optics
  • Available in full-spectrum colors and whites

Applications

  • General Illumination
  • Display Case Lighting
  • Sign Lighting
  • Flashlights


Accessory Ordering Details

Part Number Configuration Category Description Count
CO-10412 1-Up Optics Spot Base Module ~
CO-10413 1-Up Optics Medium Base Module ~
CO-10414 1-Up Optics Wide Frosted Base Module ~
CO-10415 1-Up Optics Oval Base Module ~
CO-10507 3-Up Optics Spot Base Module ~
CO-10511 3-Up Optics Frosted Spot Base Module ~
CO-10508 3-Up Optics Medium Base Module ~
CO-10509 3-Up Optics Wide Frosted Base Module ~
CO-110510 3-UP Optics Oval Base Module ~
A001-010H ~ Thermal Thermal Adhesive Tape 10
A001-150H ~ Thermal Thermal Adhesive Tape 150
