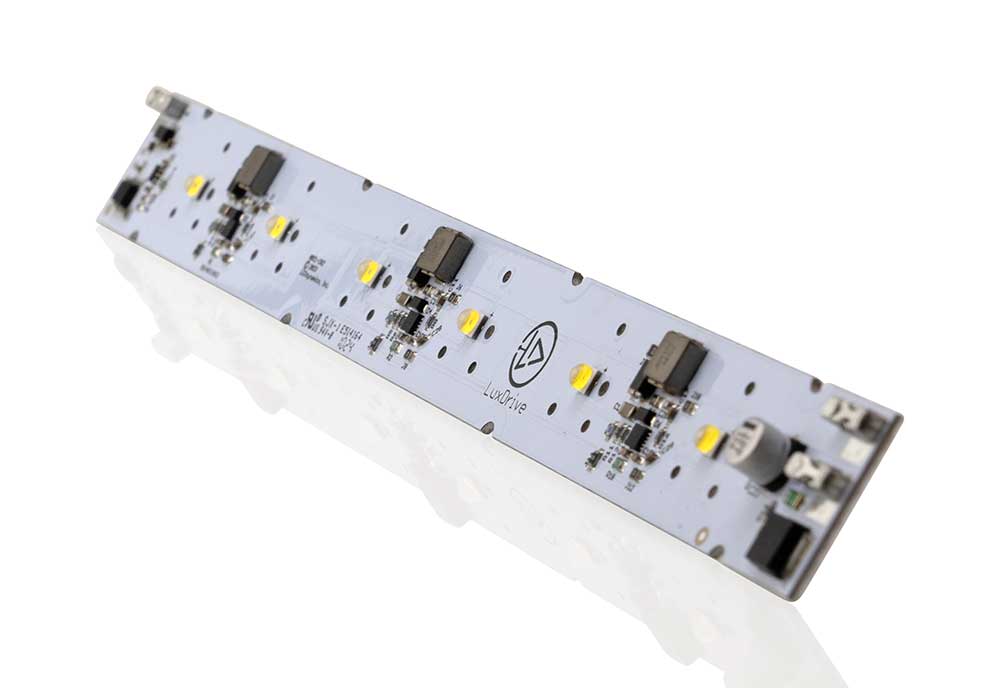

The N021 LUXblast is a high-output linear light engine capable of delivering 7000 lumens. With its small 10-inch long footprint, it’s the ideal solution for spaces requiring ample illumination. Featuring four optional optics, the LUXblast offers versatile solutions, from spotlights to floodlights. Equipped with built-in thermal and under voltage protection, it safeguards both your light and power supply from unexpected conditions, ensuring damage-free operation.
Documentation
Download Literature
Features
- 7000+ Lumens from Cree LEDs
- Optional Khatod Optics
- Built-in Thermal Protection
- Made in America design and quality
Applications
- Architectural
- Commercial
- Residential
- Display & Accent
Product Selection Guide
| Product | N021 | |||
|---|---|---|---|---|
| General | Shape: | Rectangle | ||
| LED Count | 6 | |||
| Field Cut: | No | |||
| Lumens: | 7000 lm | |||
| Thermal: | Backoff above 80oC | |||
| Beam Angle: | 120o | |||
| CCT: | 2700K to 6500K | |||
| CRI: | 70 | 80 | 90 | |||
| Electrical | Input Voltage: | 11VDC min | 12VDC typ | 15VDC max |
| Wattage: | 67W typ | |||
| Efficacy: | 104 lm/W | |||
| Environment | Operating Temp: | -20 to 80o C | ||
| Storage Temp: | -40 to 125o C | |||
| Mechanical | Connection: | Poke-Home 18-22 AWG | ||
| Mounting: | Double Sided Adhesive or #6 Fasteners | |||
| Dimensions : | 10.0 x 0.95 x 0.26 in | |||
| Weight: | 1.13oz (32g) | |||
| Regulatory | Compliance: | RoHS | ||
| Warranty: | 1 Year | |||
