Saiph-J036 – Luxeon C LED Light Module
Price range: $6.37 through $8.25

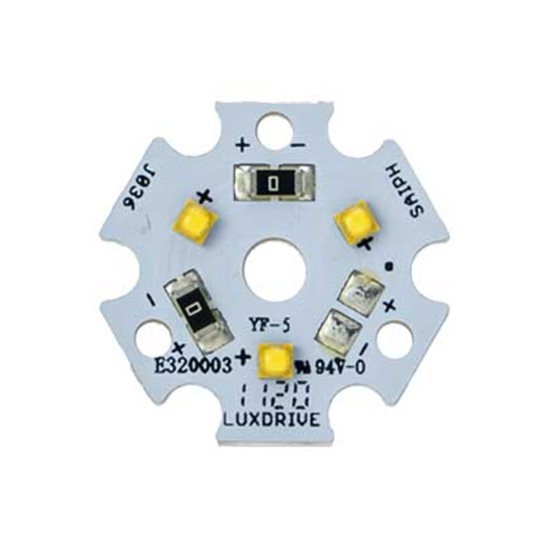

The Saiph Star J036 is an LED Light Module, specifically categorized as a Star Board (20mm), within the reliable and efficient LUXdrive™ product line. This module features 3 Luxeon C LEDs and provides a lumen range of 94 to 357.
Overview
The Saiph Star combines high brightness with ease of integration into fixtures and OEM applications. The LUXdrive™ Saiph Star features the Luxeon C emitter in both 1-up and 3-up designs on a 20mm star board. Inherent electrical isolation means thermal interface materials are not required to be electrically insulative. LEDdynamics strives to use the highest flux bins that are most readily available, please contact us if you require a specific bin.
Features
- Made in America design and quality
- Customization of specifications available
- Available in range of colors and white
- Beam sculpting optics available
Applications
- General Illumination
- Display Case Lighting
- Sign Lighting
- Flashlights
Datasheet
Accessories
| Category | Description | Part Number 1-up | Part Number 3-up | Count |
|---|---|---|---|---|
| Optics | Spot Base Module | CO-10412 | CO-10507 | ~ |
| Frosted Spot Base Module | ~ | CO-10511 | ~ | |
| Medium Base Module | CO-10413 | CO-10508 | ~ | |
| Wide Frosted Base Module | CO-10414 | CO-10509 | ~ | |
| Oval Base Module | CO-10415 | CO-10510 | ~ | |
| Thermal | Thermal Adhesive Tape | A001-010H | 10 | |
| A001-150H | 150 | |||
For specifics on optics please visit Carclo here. https://www.carclo-optics.com/optics-for-leds
