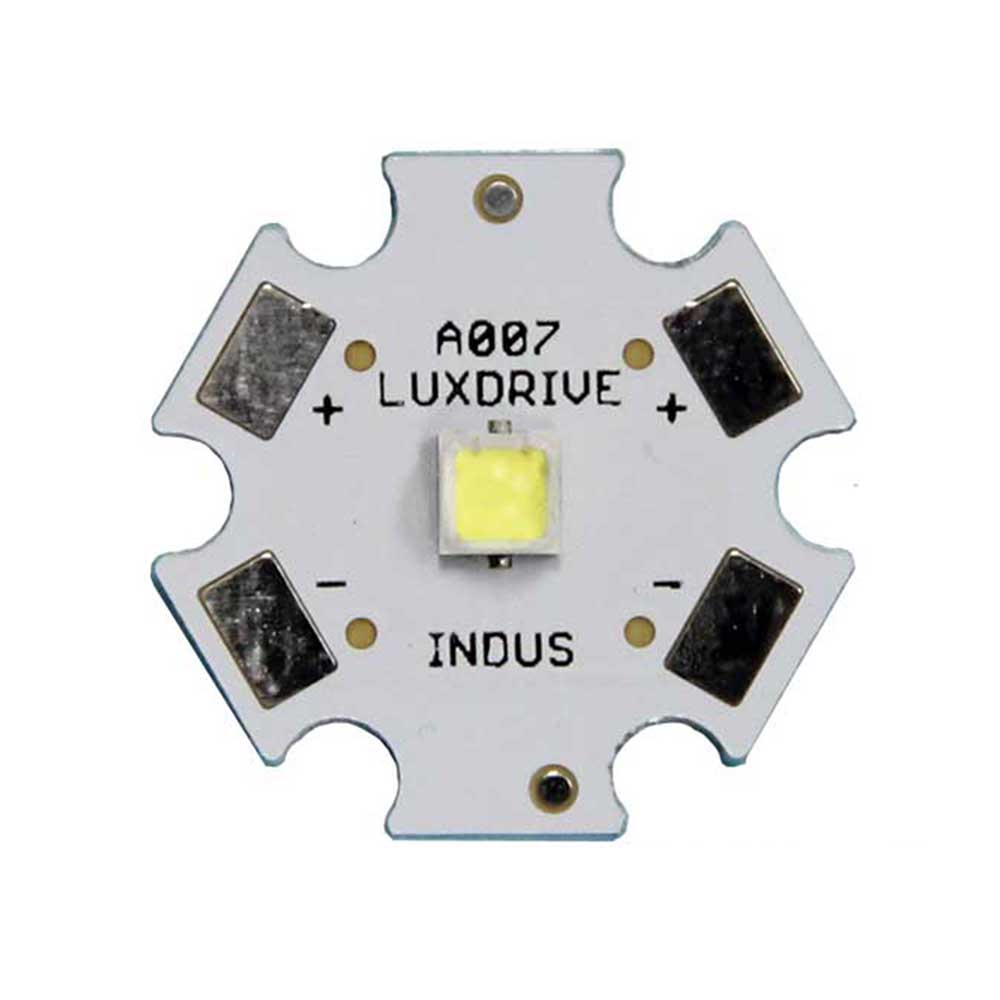

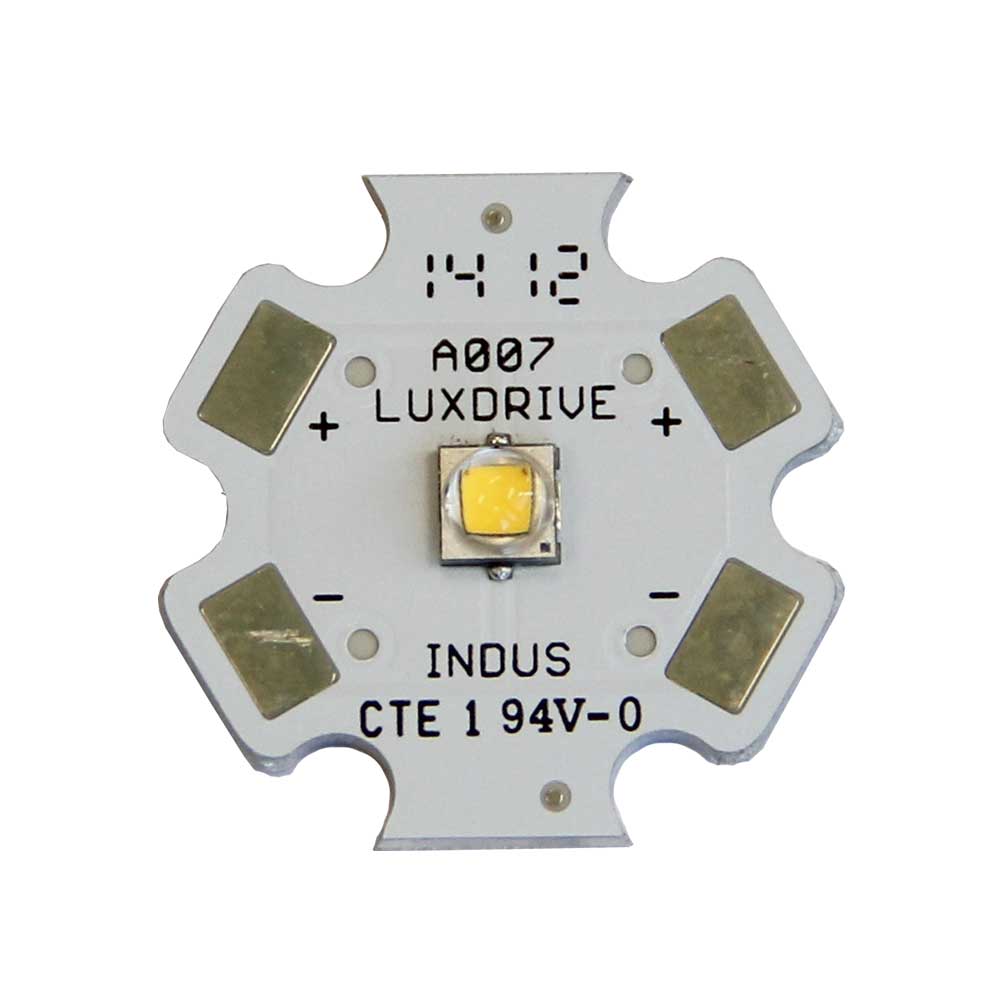

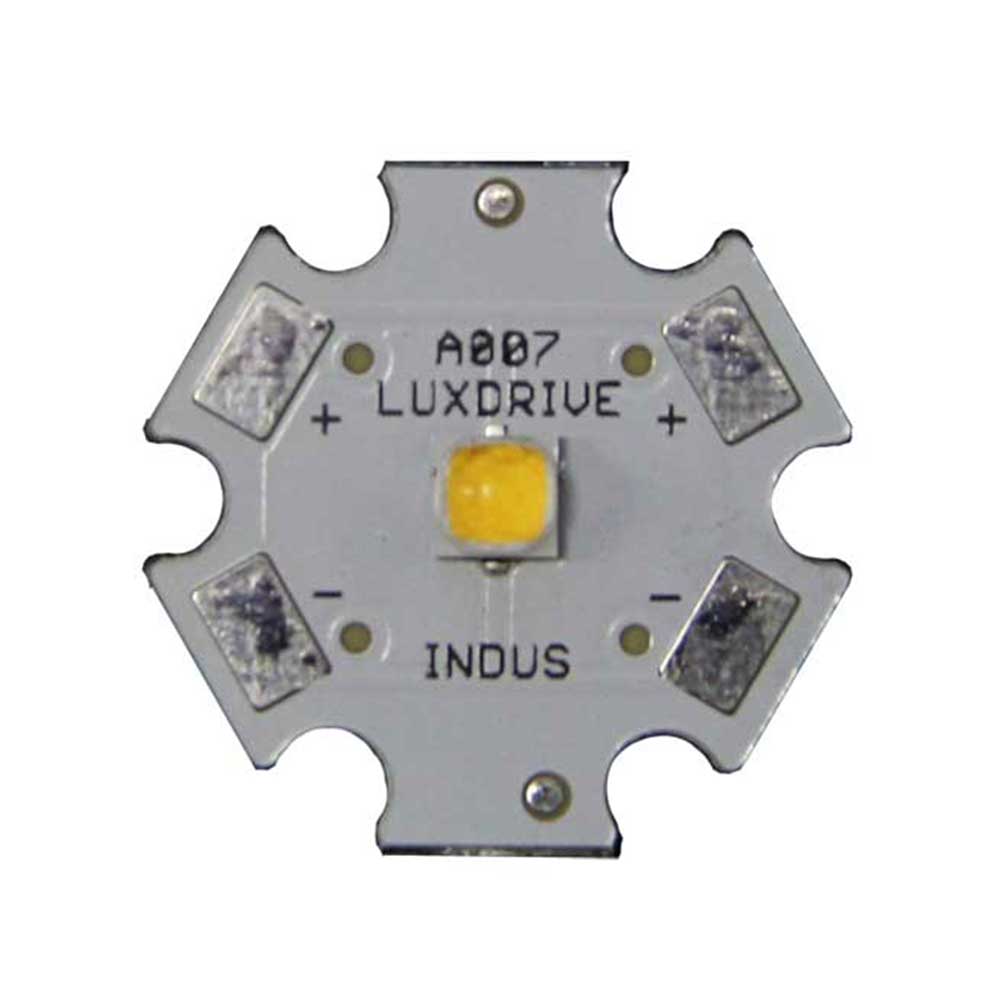

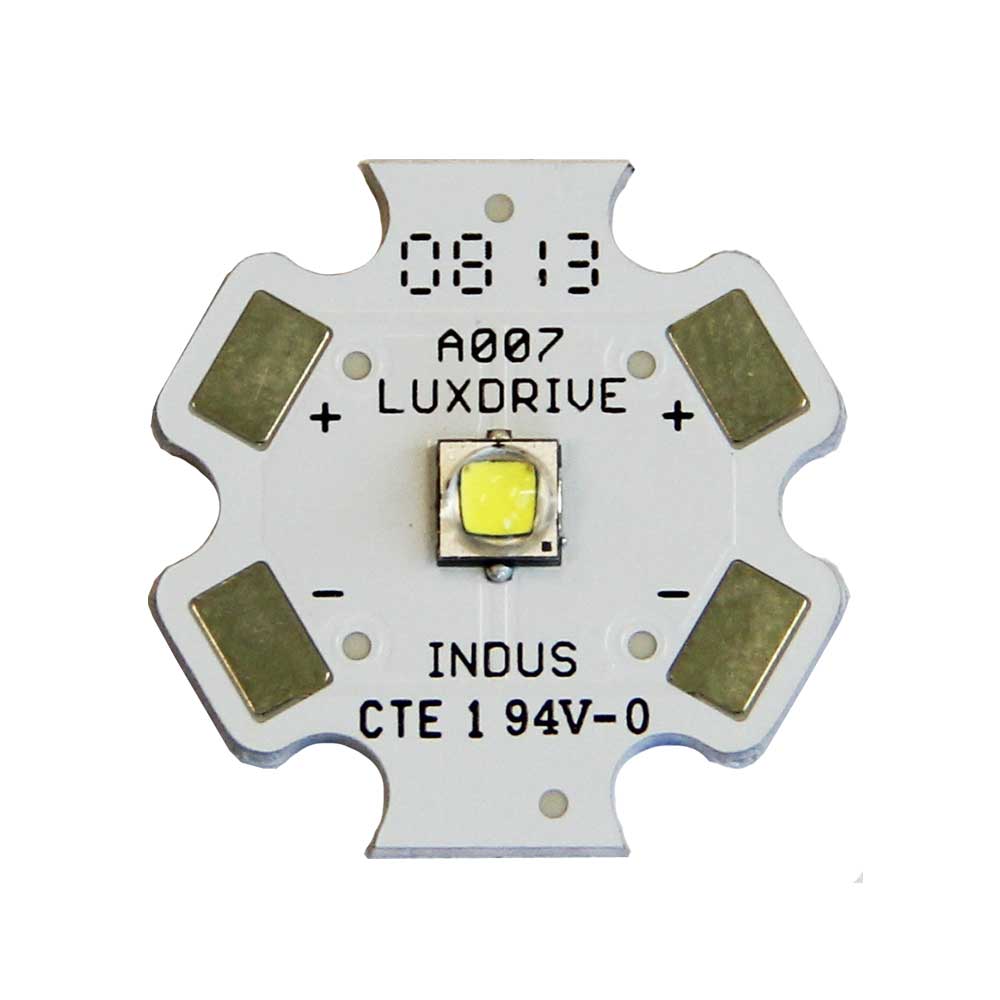

Indus Star A007 – Cree LED Light Module

---

Overview

The Indus Star A007 combines high brightness with ease of integration into fixtures and OEM applications. The Indus Star A007 features a wide range of Cree XLamp emitters in a simple 1-up design on a 20mm star board. Inherent electrical isolation means thermal interface materials are not required to be electrically insulative. LEDdynamics strives to use the highest flux bins that are most readily available, please contact us if you require a specific bin.

Datasheet

Indus Star A007 Datasheet

Features

• Made in America design and quality
• Customization of specifications available
• Available in range of colors and white
• Beam sculpting optics available

Accessories

• General Illumination
• Display Case Lighting
• Sign Lighting
• Flashlights

White 1-Up Product Selection Guide

Star Design	Cree LED	Part Number	CCT	CRI	Voltage (Vf)	Lumens @350mA
1-Up Cree XLamp XP Package (3.45mm) on 20mm Star	XP-L2	A007-CL20830V2	3000K	80	2.791	4001
		A007-CL20840V3	4000K	80		4201
		A007-CL20750V4	5000K	80		4401
		A007-CL20765V5	6500K	80		4601
	XP-G3	A007-CG30827R4	2700K	80	2.70	119
		A007-CG30830R5	3000K	80		139
		A007-CG30840S2	4000K	80		148
		A007-CG30750S3	5000K	70		156
		A007-CG30765S4	6500K	70		164
	XP-G2 HE	A007-CG2H830R5	3000K	80	2.70	139
		A007-CG2H840S3	4000K	80		156
		A007-CG2H750S3	5000K	70		156
		A007-CG2H765S4	6500K	70		164
	XP-E2	A007-E2827-Q2	2700K	80	2.84	87
		A007-E2830-Q3	3000K	80		93
		A007-E2740-Q4	4000K	70		114
		A007-E2750-Q4	5000K	70		156

1Values specified @350mA, Tj 85°C – for more specs, visit emitter data sheet: XP-L2, XP-G3, XP-G2 HE, XP-E2
2Cree XP-L2 is tested @ 1050mA, Tj 85°C
3All specifications are subject to change without prior notification.

Color Product Selection Guide

Star Design	Cree LED	Part Number	Color	Wavelength (NM)	Voltage (Vf)	Lumens @350mA
1-Up	XP-G3	A007-CG30PHR32	Photo Red	645	1.99	5002
		A007-CG30ROYF4	Royal Blue	451	2.79	7302
	XP-E2	A007-CE20AMBP4	Amber	585-595	2.18	80.6
		A007-CE2BLUM3	Blue	465-485	2.85	45.7
		A007-CE20FAR27	Far Red	720-740	1.85	3752
		A007-CE20GRNR3	Green	520-535	2.70	122
		A007-CE20PCAQ5	PC Amber	~	2.94	107
		A007-CE2PHR30	Photo Red	650-670	2.05	4502
		A007-CE20REDP3	Red	620-630	2.18	73.9
		A007-CE20RDOQ5	Red-Orange	610-620	2.18	107
		A007-CE20ROY37	Royal Blue	450-465	2.96	4502
3-Up	XP-G3	A008-CG30PHR32	Photo Red	645	5.97	15002
		A008-CG30ROYF4	Royal Blue	451	8.37	21902
	XP-E2	A008-CE20AMBP4	Amber	585-595	6.54	242
		A008-CE2BLUM3	Blue	465-485	8.55	137
		A008-CE20FAR27	Far Red	720-740	5.55	11252
		A008-CE20GRNR3	Green	520-535	8.1	366
		A008-CE20PCAQ5	PC Amber	~	8.82	321
		A008-CE2PHR30	Photo Red	650-670	6.15	13502
		A008-CE20REDP3	Red	620-630	6.54	222
		A008-CE20RDOQ5	Red-Orange	610-620	6.54	321
		A008-CE20ROY37	Royal Blue	450-465	8.79	13502
		A008-CE20RGB00	Red/Green/Blue	see emitter values	see below3	see emitter values

1Values specified @350mA, Tj 25°C – for more specs, visit emitter data sheet: XP-L2, XP-G3, XP-G2 HE, XP-E2
2Photo Red, Far Red, and Royal Blue are binned by radiometric power.  All other colors are binned by luminous flux.
3RGB LED boards are built without the 0 ohm jumpers connecting the LEDs in series, each LED is individually driven so that you can RGB color mix.
4All specifications are subject to change without prior notification.

Specific Maximum Ratings

LED Series	DC Current (mA)	Typ. Viewing Angle	Thermal Resistance (°C/W)*
			1-up	3-up
Cree XP-L2	3000	125°	1.6°	1.2°
Cree XP-G3 - Whites	2000	125°	4°	2°
Cree XP-G3 - Photo Red	1500	125°	3.5°	2°
Cree XP-G3 - Royal Blue	2000	130°	3°	1.83°
Cree XP-G2 HE	2000	125°	4°	2°
Cree XP-E2 - Whites	1500	110°	6.8°	2.93°
Cree XP-E2 - Amber	1500	130°	8.5°	3.5°
Cree XP-E2 - Blue, Royal Blue	1200	135°	6.7°	2.90°
Cree XP-E2 - Far Red	1500	140°	7.5°	3.17°
Cree XP-E2 - Green	1500	135°	10°	2°
Cree XP-E2 - PC Amber	1500	105°	6.5°	2.83°
Cree XP-E2 - Red, Photo Red, Red-Orange	1500	130°	7.5°	3.17°

*LED junction to bottom of starboard (MCPCB), measured in °C/W

Accessory Ordering Detail

Type	Category	Part Number	Description	LED Number	Beam Angle	Count
XP-G2	Optics	CO-10003	Plain Tight	1	12o	~
		CO-10138	Frosted Narrow	1	14o	~
		CO-10003-15	Ripple Medium	1	29o	~
		CO-10139	Frosted Medium	1	21o	~
		CO-10003-25	Ripple Wide	1	41o	~
		CO-10140	Frosted Wide	1	31o	~
		CO-10003-L25	Elliptical	1	44 x 12o	~
		CO-10734	Universal Holder	1	~	~
XP-E2	Optics	CO-10193	Plain Tight	3	8o	~
		CO-10194	Frosted Narrow	3	10o	~
		CO-10208	Ripple Medium	3	28o	~
		CO-10195	Frosted Medium	3	43o	~
		CO-10209	Ripple Wide	3	31o	~
		CO-10196	Frosted Wide	3	47 x 8o	~
		CO-10197	Elliptical	3	~	~
		CO-10736	Universal Holder	3	~	~
XP-E2 & XP-G2	Optics	CO-10507	Spot Base Module	3	16o	~
		CO-10511	Frosted Spot Base Module	3	22o	~
		CO-10508	Medium Base Module	3	26o	~
		CO-10509	Wide Frosted Base Module	3	37o	~
		CO-10510	Oval Base Module	3	43 x 16o	~
General	Thermal	A001-010H	Thermal Adhesive Tape	~		10
		A001-150H		~		150
