Features

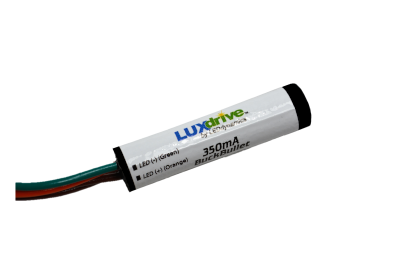

BuckBullet
  • Made in America craftsmanship and quality
  • AC input voltage up to 24VAC RMS
  • True constant current output 350mA, 500mA or 700mA
  • Customization of specifications available
  • Small 0.5” x 2” (Dia x Len) mechanical envelope
  • Output open and short circuit protection

Download

Applications

Literature

BuckBullet 7006 – 7006_Data_Sheet_v2-5

  • Landscape & Garden Lighting
  • Architectural Lighting
  • Signal & Marker Lighting
  • General Illumination
  • Signage

Specifications

Product7006-H-3507006-H-5007006-H-700
GeneralTopology:Buck
Input / Output:DC / DC
InputVoltage Range: 8 to 24 VAC
Efficiency: 95%
OutputDrive Current: 350 mA500 mA700 mA
ControlDimmable: Non Dimming
ProtectionShort Circuit: Yes
EnvironmentOperating Temp: -40 to 60o C
Storage Temp: -40 to 125o C
Operating Case Temp: -40 to 60o C
DimensionsDia x L:0.5 x 2.0 in
Weight:0.59 oz
RegulatoryCompliance: RoHS
Warranty2 Years

* All specifications are subject to change without prior notification.

Ordering Detail

Part Number Input Voltage On-board TrimDrive CurrentControlConnection
7006-H-3508 to 24 VACNo350 mANon Dimming18 AGW 4 Wire Lead
7006-H-500500 mA
7006-H-700700 mA
